20A High Output 5.0A USB Receptacle
- 20A NEMA 5-20R receptacle format for commercial heavy-duty branch circuits
- 5A total USB output designed for simultaneous high-demand device charging
- Tamper-resistant shutters support covered NEC 406.12 installation locations
- Standard receptacle design for indoor dry locations only — not GFCI, not WR
- Back-wire and side-wire installation with wall plate included
- 7 standard colors for commercial finish matching
Available Colors
Why 5A Output Matters in a 20A Commercial USB Receptacle
This product 20A 5.0A USB receptacle is not just another 20A USB outlet with the same charging ceiling as lower-tier models. It is designed for premium dry-location commercial spaces where users may plug in two high-demand mobile devices at the same time and still expect strong, stable charging performance. The real value of this SKU is that it pairs a NEMA 5-20R 20A receptacle format with a 5A total USB charging platform, making it better suited to VIP lounges, restaurant POS areas, executive boardrooms, and other spaces where slow shared charging creates user frustration.
Who Should Use This Model
- Contractors specifying premium commercial dry-area receptacles
- Facility managers upgrading breakrooms, lounges, and boardrooms
- Hospitality and restaurant project buyers who want stronger multi-device charging
- Distributors sourcing high-output 20A USB receptacles for spec-driven B2B projects
When to Choose a Different Model
- Choose a 20A 3.6A USB receptacle when budget matters more than simultaneous charging performance
- Choose a 20A GFCI USB model when the installation is near sinks or other NEC-covered wet or damp locations
- Choose a PD or laptop-oriented charging receptacle when the project requires high-voltage fast charging rather than standard 5V USB output
NEMA 5-20R High-Output USB Outlet Specifications
| Product Code | SXUT2050 |
| Certified Safety | UL, cUL |
| GFCI Type | None |
| Voltage | 125V |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | 5.0A, 5V DC |
| USB Ports | Dual USB Ports |
| Single Port Output | Up to 2.4A per port |

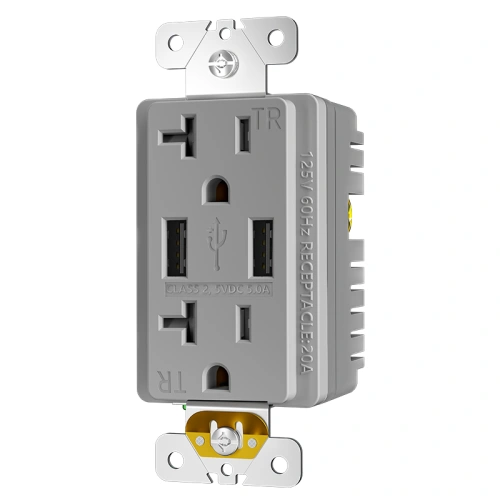

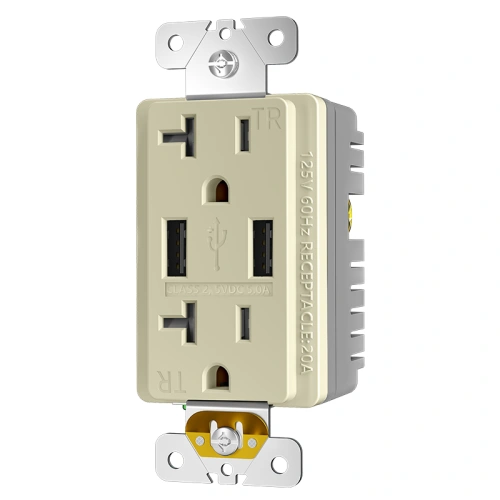

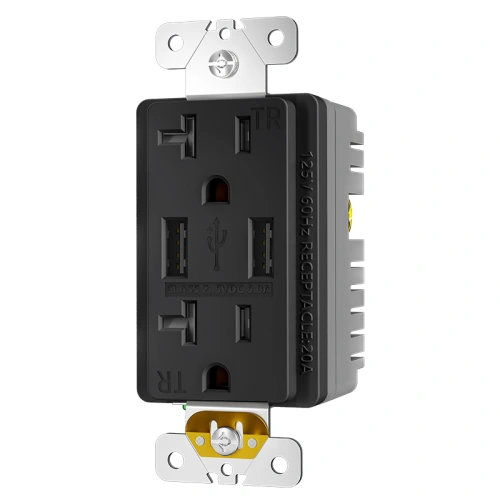

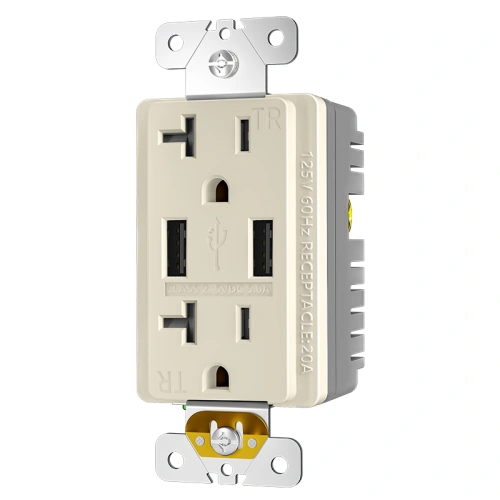

| Color | White,Ivory,Almond,Black,Grey,Brown,Graphite |
| Finish | Satin |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |
| Features | High Output USB Charging, Tamper Resistant, Standard Receptacle |

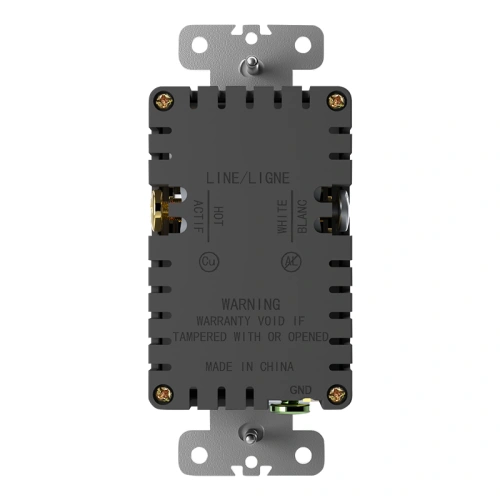

| Wiring Method | Back Wire and Side Wire |
| Pole | 2 |
| Wire | 3 |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Grounding | Self Grounding |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
What makes a 5A total output better than a 3.6A output in a commercial space?
A 3.6A outlet divides less charging current across connected devices, so charging speed can drop when two devices are plugged in at the same time. A 5A total output design provides more internal charging capacity and is better suited to commercial spaces where two devices may need stronger simultaneous charging performance.
Can I install this 20A 5A USB receptacle on a standard 15A office circuit?
No. NEC 210.21(B)(3) does not permit a 20A receptacle to be installed on a 15A branch circuit. Because this product uses a NEMA 5-20R configuration, it must be installed on a correctly matched 20A circuit.
Does this 20A high-output USB outlet include GFCI protection?
No. This is a standard commercial receptacle for indoor dry locations and it does not include GFCI protection. Installations near sinks or other NEC-covered wet or damp locations should use a GFCI or USB GFCI model instead.
Will the USB ports charge laptops in a conference room?
No. This model provides standard 5V USB charging rather than laptop-class Power Delivery. Laptops should use AC adapters through the NEMA 5-20R receptacle slots, while the USB ports are intended for phones, tablets, and similar portable devices.
Do hotel guest areas or similar covered locations require tamper-resistant shutters on 20A USB outlets?
Yes, in NEC-covered locations. NEC 406.12 requires tamper-resistant construction for covered 15A and 20A nonlocking receptacles in locations such as dwelling units, hotel and motel guest rooms, child care facilities, and other covered occupancies. This model includes tamper-resistant shutters on the AC receptacle slots.

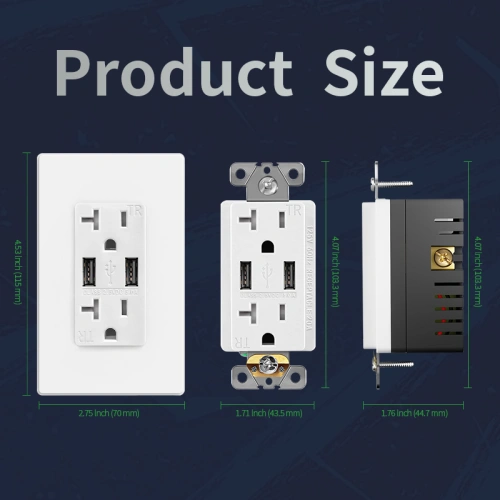

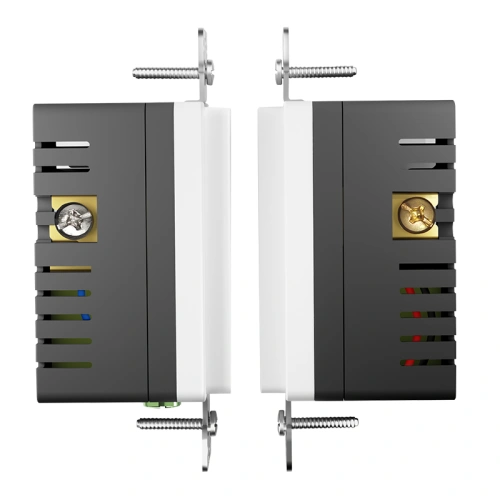

Does this 20A 5A USB outlet require a deeper electrical box?
Yes, that is strongly recommended. A 20A receptacle combined with a high-output internal USB power module generally needs more box space than a standard non-USB outlet. Contractors should account for conductor size and NEC 314.16 box fill requirements, and a deep wall box is the safer practical choice for installation planning.
Can two devices still charge well at the same time on this outlet?
Yes. That is the main reason to choose a 5A total output model. It is built for stronger simultaneous charging performance than common lower-output USB receptacles, which makes it better suited to commercial spaces where two devices may be connected at once.
Where should this model not be installed?
It should not be installed on 15A circuits, near sinks or wet-location areas without proper GFCI protection, or in projects expecting laptop-class PD charging. It is designed for premium indoor dry commercial spaces on correctly matched 20A circuits.
No-Throttling 20A USB Outlet for Public Spaces Applications
Offices & Workstations
Replaces loose adapters at every desk. One device delivers 120V AC plus USB charging from a single gang box.
UL · cUL · NEC 406.3
Hotel Guest Rooms
Guests charge phones and tablets without front-desk adapters. USB-A handle mixed devices on every visit.
UL · cUL · Hospitality Spec
Residential Bedrooms
Swap a standard duplex for USB-A in the same box. Installs on any 20A branch circuit.
UL · cUL · TR · NEC 406.12
Retail & Waiting Areas
Lobbies, clinics, and retail counters add customer-facing USB charging without surface power strips or floor stations.
UL · cUL · Commercial Duty
Premium Commercial USB Charging Upgrade video Overview
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
