20A Tamper Resistant USB Receptacle
- UL/cUL Listed: Certified for the North American market.
- 20 Amp Rating: Suitable for higher current indoor applications.
- Tamper Resistant: Includes built-in safety shutters.
- Dual USB Charging: Provides up to 5V 3.6A output.
- Multiple Colors: Offered in 7 finishes for different interiors.
Why Choose ShengYu
- North America Market Expertise
- Stable Production, Reliable Quality
- OEM / ODM for Brand Growth
- Commercial Project Supply Support
- Private Label & Packaging Customization

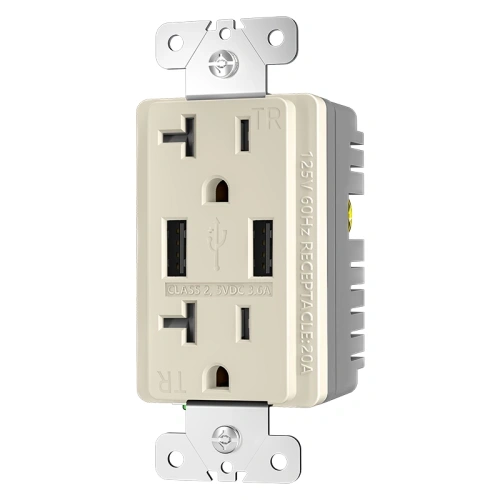

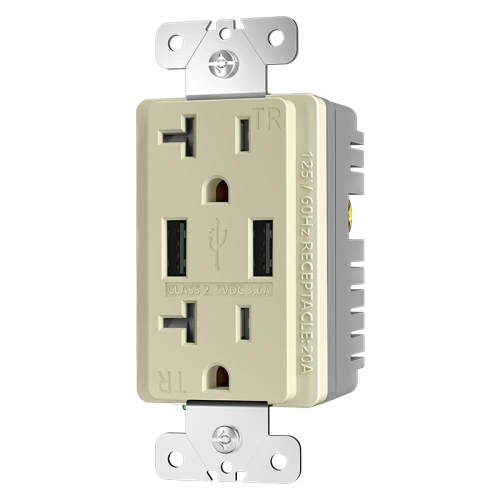

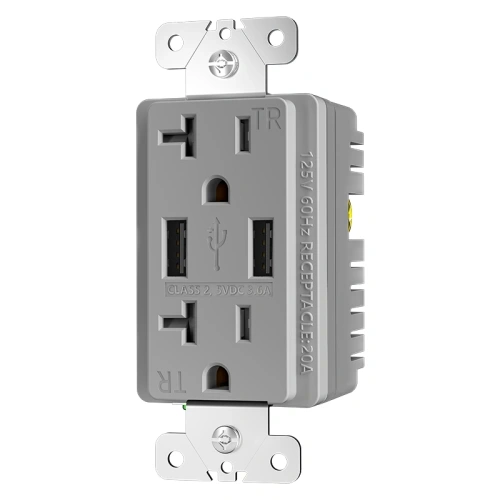

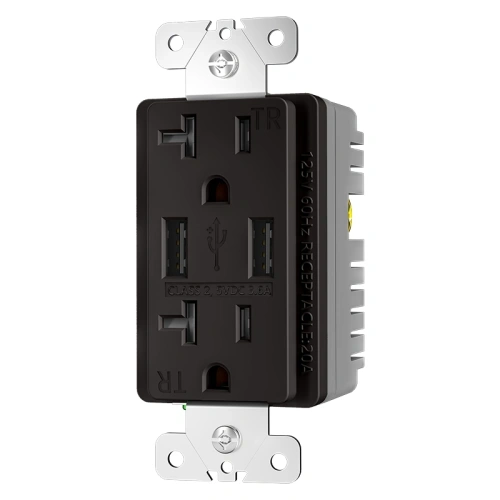

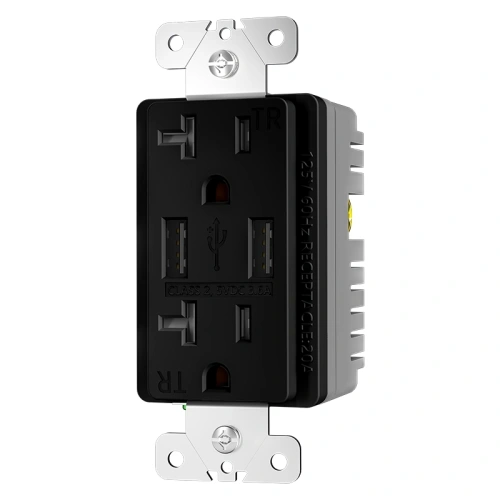

Available Colors
Dual USB Charging Output Description
This 20A USB receptacle is a UL and cUL listed indoor wall outlet with tamper resistant shutters and dual USB charging up to 5V 3.6A. It is available in 7 color options for commercial, office, hospitality, and residential project applications.
20A USB Receptacle Features
| Product Code | SXUT2036 |
| Certified Safety | UL, cUL |
| Voltage | 125V |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | 3.6A, 5V DC |
| USB A | 5V DC 2.4A |
| USB A | 5V DC 2.4A |
| Color | White,Ivory,Almond,Black,Grey,Brown,Graphite |
| Finish | Satin |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |

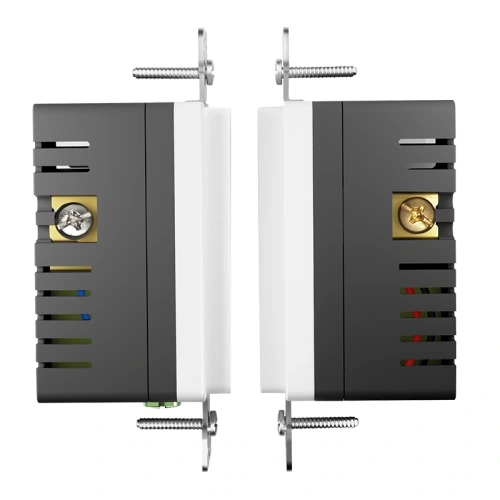

| Wiring Method | Back Wire and Side Wire |
| Pole | 2 |
| Wire | 3 |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Grounding | Self Grounding |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |

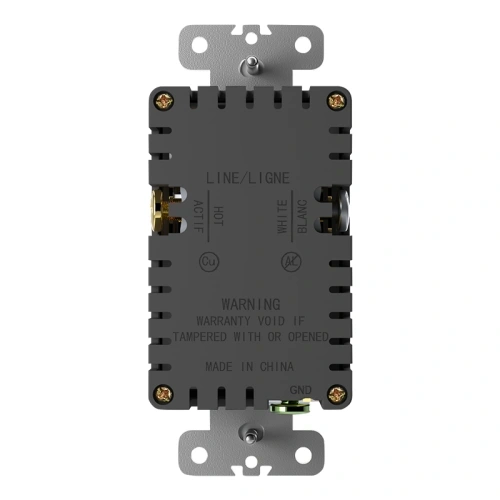

| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
What is a 20A USB receptacle used for
A 20A USB receptacle is used in indoor wall installations where a higher current rating and built-in USB charging are needed. Common applications include offices, kitchens, hospitality spaces, and other project environments.
Is this 20A USB outlet tamper resistant?
Yes. This product includes tamper resistant shutters for added safety.
Does this 20A USB receptacle include dual USB charging?
Yes. This model includes dual USB charging with up to 5V 3.6A output.
Is this product rated for wet locations?
No. This model is not a WR receptacle and is intended for indoor use.
What is the difference between a 15A and a 20A USB receptacle?
A 20A USB receptacle is designed for applications that require a higher current rating than a 15A device. Product selection should always match the installation requirements and local electrical standards.
Can this USB receptacle be used in commercial projects?
It can be used for commercial, office, hospitality, and residential indoor applications based on project requirements and local code compliance.

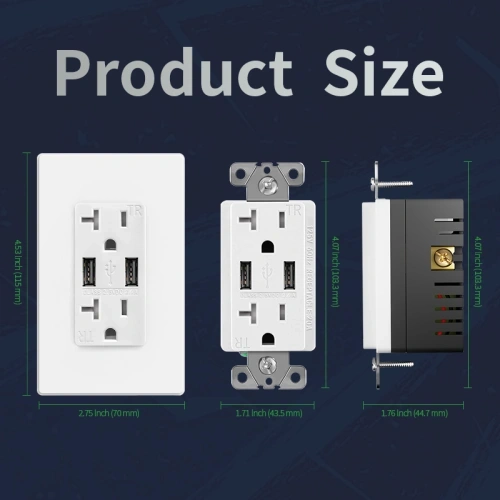

Product Overview
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
