20A High Output 5.0A Dual USB-C Receptacle
- UL/cUL Listed: Approved for North American applications.
- 20 Amp Configuration: Built for indoor 20A circuit use.
- NEMA 5-20R T-Slot: Clearly identified for 20A compatibility.
- Dual USB-C Ports: Supports pure Type-C charging access.
- High Output Charging: Provides up to 5V 5.0A total output.
Why Choose ShengYu
- North America Market Expertise
- Stable Production, Reliable Quality
- OEM / ODM for Brand Growth
- Commercial Project Supply Support
- Private Label & Packaging Customization

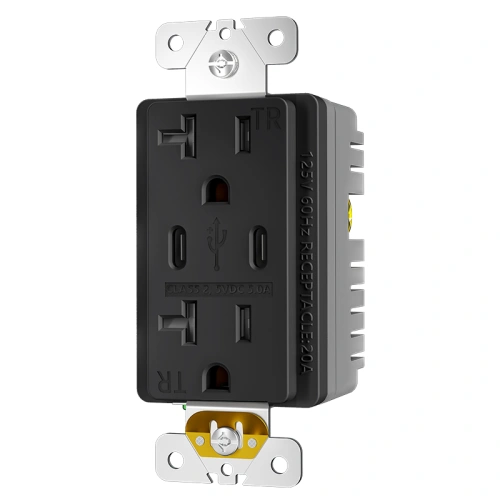

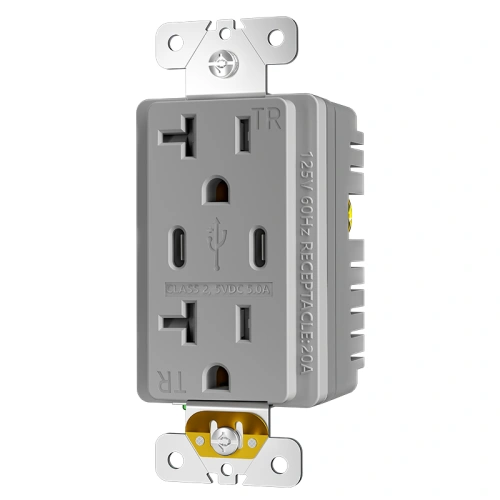

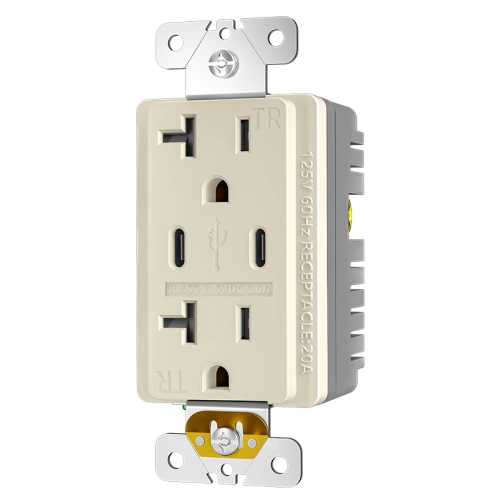

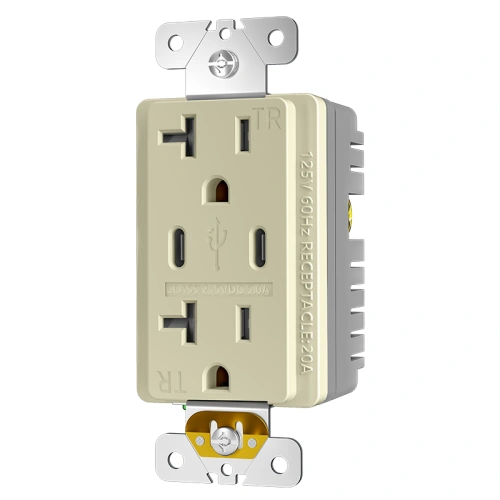

Available Colors
NEMA 5-20R T-Slot Description
A 20A 5.0A dual USB-C receptacle combines a NEMA 5-20R T-slot, standard wall power access, and two Type-C charging ports in one indoor device. With tamper resistant shutters and up to 5V 5.0A total output, it supports higher-capacity charging in commercial and project environments that prefer a pure USB-C wall outlet.
20A 5.0A Dual USB-C Receptacle Features
| Product Code | CMUT2050C |
| Certified Safety | UL, cUL |
| Voltage | 125V |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | 5.0A, 5V DC |
| USB C | 5V DC 2.4A |
| USB C | 5V DC 2.4A |
| Color | White,Ivory,Almond,Black,Grey,Brown,Graphite |
| Finish | Satin |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |

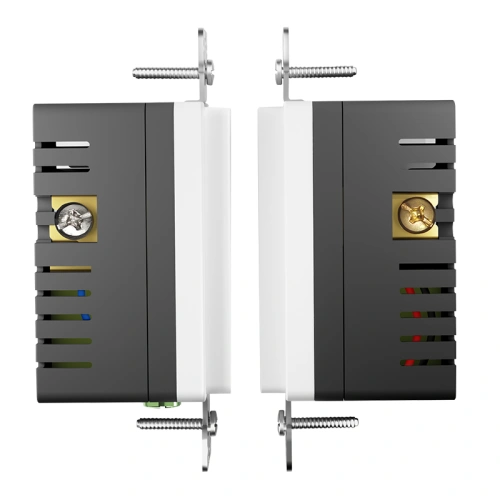

| Wiring Method | Back Wire and Side Wire |
| Pole | 2 |
| Wire | 3 |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Grounding | Self Grounding |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |

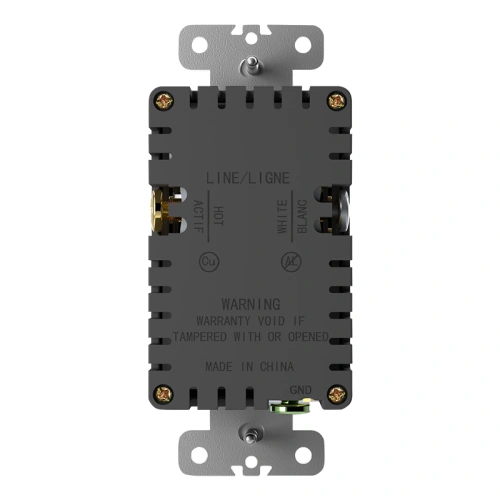

| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
What is a 20A 5.0A dual USB-C receptacle?
A 20A 5.0A dual USB-C receptacle is a wall outlet that combines a 20 amp receptacle with two USB-C charging ports and a maximum total USB output of 5V 5.0A.
Why does this outlet have a NEMA 5-20R T-slot?
The T-slot identifies the receptacle as a NEMA 5-20R configuration, which is used for 20A applications and distinguishes it from standard 15A receptacles.
Does this 20A dual USB-C outlet support Power Delivery or fast charging?
No. The confirmed maximum total USB output is 5V 5.0A, so it is intended for higher-capacity standard charging rather than PD fast charging.
Can two devices be charged at the same time?
Yes. The receptacle includes two USB-C ports, and the maximum total USB output is 5V 5.0A across both ports.
Is this dual Type C receptacle tamper resistant?
Yes. Built-in tamper resistant shutters are included for added everyday safety.

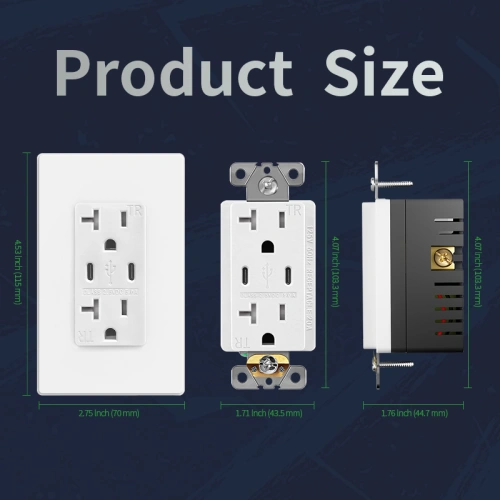

Does this product require a special electrical box size?
Specific electrical box volume requirements are not confirmed in the current product information and should be checked against the product dimensions and installation conditions.
Product Overview
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
