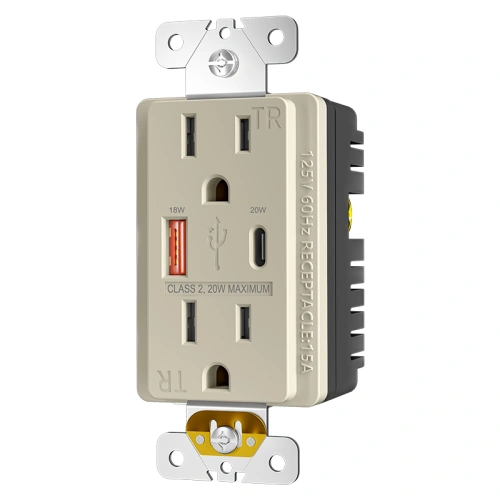

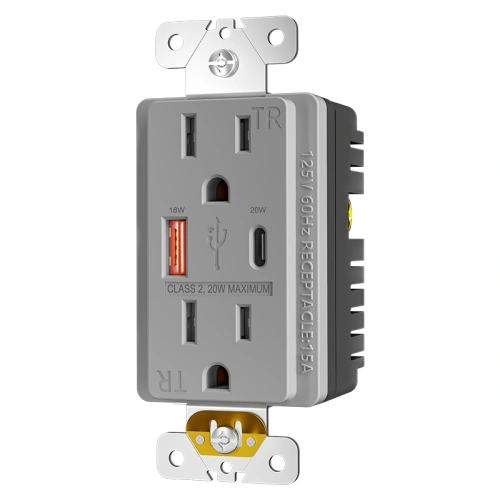

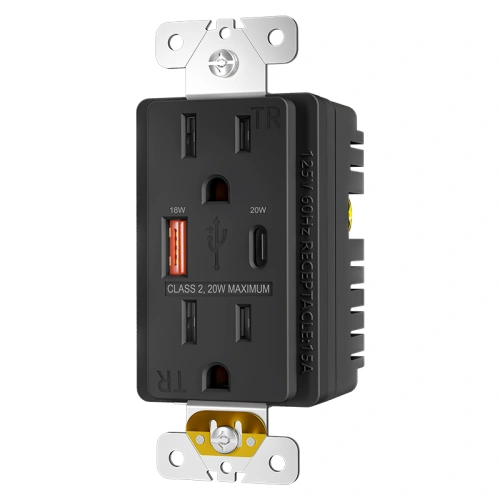

15A 20W PD Fast Charging USB Receptacle
- 15A NEMA 5-15R standard receptacle for indoor dry-location installations
- True fast charging with PD 20W on USB-C and QC 18W on USB-A
- 20W maximum total USB output for modern phones and tablets
- Tamper-resistant shutters support covered NEC 406.12 installation locations
- Standard indoor receptacle design — not GFCI and not weather resistant
- Wall plate included
Available Colors
True PD and QC Fast Charging for Modern Guest Rooms
This page should be framed around charging speed quality, not just port count. A standard USB wall outlet can add convenience, but this model 20W PD USB receptacle is built for projects that want a clearly better charging experience for current smartphones and tablets. By combining a PD 20W USB-C port, a QC 18W USB-A port, and a 15A NEMA 5-15R receptacle in one indoor wall device, this SKU gives hospitality and premium residential buyers a fast-charge amenity that feels materially better than legacy 5V USB outlets without moving into the cost tier of laptop-grade charging hardware.
Who Should Use This Model
- Hospitality buyers upgrading hotel nightstands and guest bedroom charging points
- Property managers modernizing premium apartments and luxury multi-family interiors
- Contractors specifying indoor dry-location fast-charge receptacles for phone-heavy environments
- B2B distributors sourcing PD/QC wall outlets for project-based North American supply
When to Choose a Different Model
- Choose a standard 5V USB receptacle when overnight charging is acceptable and fast charging is not a priority
- Choose a 65W-class USB-C solution when the project expects laptop charging rather than phone and tablet charging
- Choose a GFCI USB receptacle when the installation is near sinks, bathroom vanities, or other NEC-covered wet or damp locations
15A Fast Charge USB Receptacle Technical Specifications
| Product Code | SMUT15PD20 |
| Certified Safety | UL, cUL |
| GFCI Type | None |
| Voltage | 125V |
| Amperage | 15A |
| NEMA | 5-15R |
| USB Rating | 20W Max Total Output |
| USB A | QC Up to 18W |
| USB C | PD Up to 20W |
| Color | White,Ivory,Almond,Black,Grey,Brown,Graphite |
| Finish | Satin |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |
| Features | PD Fast Charging, QC Fast Charging, Tamper Resistant, Standard Receptacle |

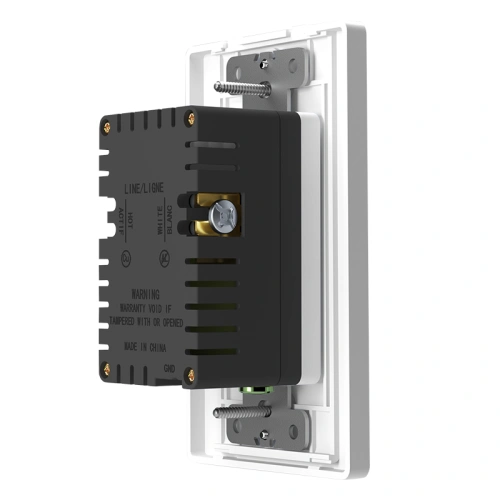

| Wiring Method | Back Wire and Side Wire |
| Pole | 2 |
| Wire | 3 |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Grounding | Self Grounding |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |

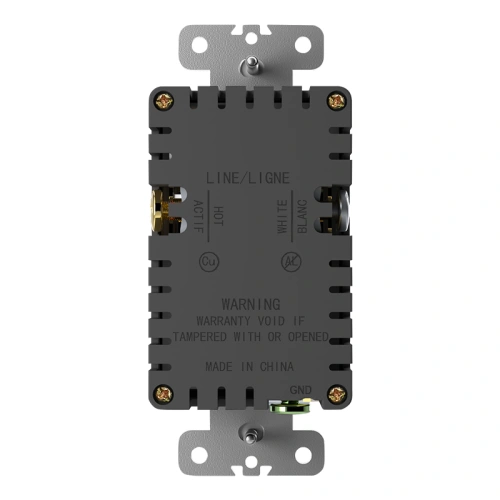

| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
What makes a 20W PD outlet different from a standard 5V USB receptacle?
A standard 5V USB receptacle provides basic charging without advanced fast-charge negotiation. A 20W PD outlet uses Power Delivery on the USB-C port and Quick Charge on the USB-A port, which allows newer phones and tablets to charge much faster than they would on a standard USB wall outlet.
Will this 20W PD wall outlet charge a laptop or MacBook?
No. This receptacle supports up to 20W Power Delivery, which is designed for smartphones, tablets, and similar mobile devices. Most laptops and MacBooks require much higher wattage and should use a dedicated laptop charger instead.
What happens when both the USB-C and USB-A ports are used at the same time?
The receptacle has a maximum combined USB output of 20W. When one device is connected, that port can use its full fast-charge capability. When both ports are used at the same time, the internal control system shares the 20W maximum output between the two devices.
Can this fast-charging receptacle be installed near a kitchen sink or bathroom vanity?
No. This is a standard receptacle designed for dry indoor locations and it does not provide GFCI protection. Receptacles serving kitchen countertops, bathrooms, and similar NEC-covered wet or damp locations should use a GFCI or USB GFCI model instead.
Are tamper-resistant shutters required for hotel bedrooms and apartment living spaces?
Yes, in NEC-covered locations. NEC 406.12 requires tamper-resistant construction for covered 15A and 20A nonlocking receptacles in dwelling units, hotel guest rooms, and other listed occupancy types. This model includes tamper-resistant shutters on the AC receptacle slots.
Does this 20W PD wall outlet require a deeper electrical box?

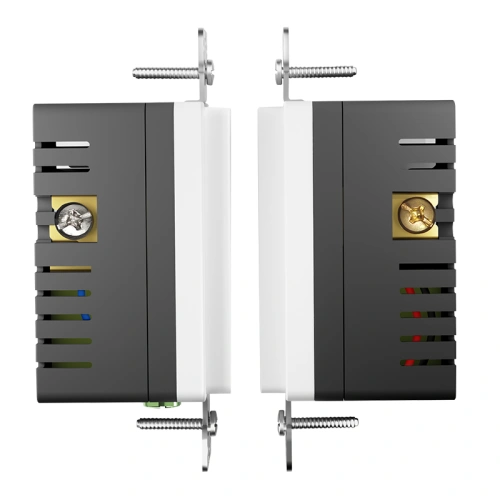

Yes, that is strongly recommended. Housing Power Delivery and Quick Charge electronics requires more internal device depth than a basic non-USB outlet. Installers should account for device size, conductor space, and NEC 314.16 box fill requirements during planning.
Why choose this model over a standard 5V USB wall outlet?
This model is intended for projects that want noticeably faster charging for smartphones and tablets. It is the stronger fit where the owner wants to improve guest or resident experience without paying for higher-wattage laptop-grade charging hardware.
Where should this model not be installed?
It should not be installed in wet or damp locations without proper GFCI protection, outdoors, or in projects expecting laptop charging. It is designed for premium indoor dry spaces where fast phone and tablet charging is the priority.
Where a 20W PD Wall Outlet Fits Best Applications
Offices & Workstations
Replaces loose adapters at every desk. One device delivers 120V AC plus USB charging from a single gang box.
UL · cUL · NEC 406.3
Hotel Guest Rooms
Guests charge phones and tablets without front-desk adapters. USB-A and USB-C handle mixed devices on every visit.
UL · cUL · Hospitality Spec
Residential Bedrooms
Swap a standard duplex for USB-A + USB-C in the same box. Installs on any 15A branch circuit.
UL · cUL · TR · NEC 406.12
Retail & Waiting Areas
Lobbies, clinics, and retail counters add customer-facing USB charging without surface power strips or floor stations.
UL · cUL · Commercial Duty
Why Protocol-Based Charging Beats Standard 5V USB Video Overview
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
