20A 20W PD Fast Charging USB Receptacle
- UL/cUL Listed: Certified for North American applications.
- 20 Amp Rating: Built for NEMA 5-20R commercial outlet requirements.
- PD 20W + QC 18W: Supports true fast charging in one device.
- USB-A + USB-C: Works with both legacy and newer charging cables.
- Tamper Resistant: Includes protective safety shutters.
Why Choose ShengYu
- North America Market Expertise
- Stable Production, Reliable Quality
- OEM / ODM for Brand Growth
- Commercial Project Supply Support
- Private Label & Packaging Customization

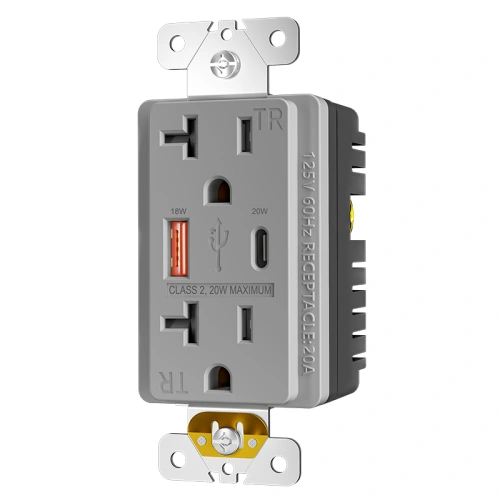

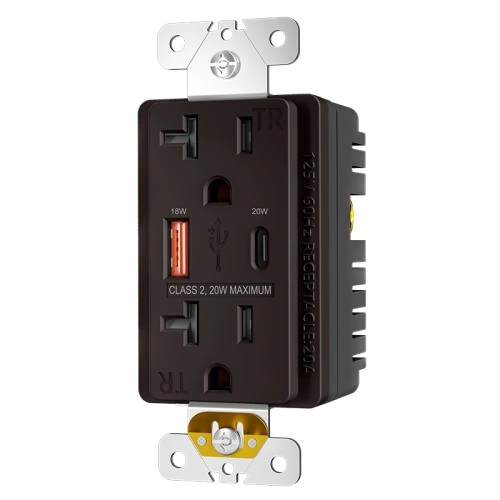

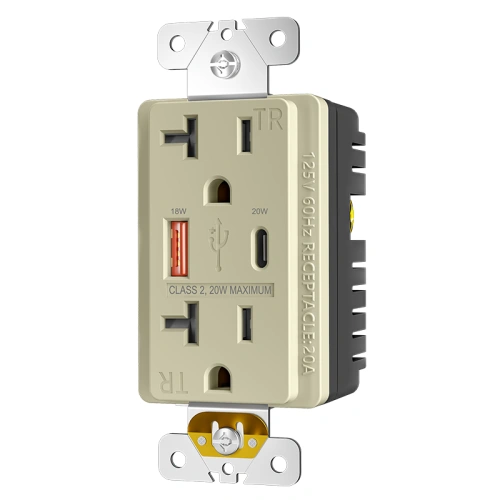

Available Colors
PD 20W and QC 18W Description
This 20A 20W PD USB receptacle combines a NEMA 5-20R duplex outlet with QC 18W USB-A and PD 20W USB-C charging in one tamper resistant device. Designed for commercial upgrades, it helps buyers specify a 20 amp wall outlet that supports both higher-capacity AC access and modern fast charging expectations.
20W PD USB Outlet Features
| Product Code | SMUT20PD20 |
| Certified Safety | UL, cUL |
| Voltage | 125V |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | PD20W |
| USB A | QC UP TO 18W |
| USB C | PD UP TO 20W |
| Color | White,Ivory,Almond,Black,Grey,Brown,Graphite |
| Finish | Satin |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |
| Wiring Method | Back Wire and Side Wire |
| Pole | 2 |
| Wire | 3 |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Grounding | Self Grounding |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
What is a 20W PD USB receptacle?
A 20W PD USB receptacle is a wall outlet that combines standard receptacle access with one USB-C port supporting Power Delivery up to 20W and one USB-A port supporting Quick Charge up to 18W.
Does this receptacle support true fast charging?
Yes. This model includes a PD 20W USB-C port and a QC 18W USB-A port, making it a fast charging wall outlet rather than a standard low-output USB receptacle.
Does the USB-C port support Power Delivery for fast charging?
Yes. The USB-C port is confirmed to support PD 20W fast charging.
What is the output of the USB-A port?
The USB-A port is confirmed to support Quick Charge up to 18W.
Is this fast charging USB receptacle tamper resistant?
Yes. Built-in tamper resistant shutters are included for added everyday safety.
Does this product require a deeper electrical box?
Specific electrical box depth requirements are not confirmed in the current product information and should be checked against the product dimensions and installation conditions.
Typical Applications
Bathrooms
NEC mandated wet location protection for hospitality and malls.
Kitchens
Reliable safety for general-use countertops near sinks.
Laundry Areas
Rugged protection for damp basements and vehicle service areas.
Multi-Unit Housing
Cost-effective, UL-listed safety for large-scale apartments.

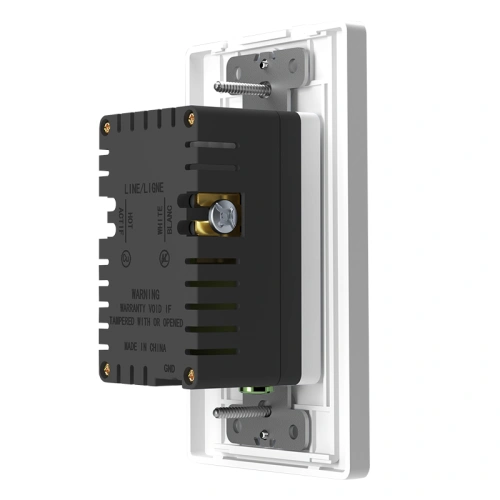

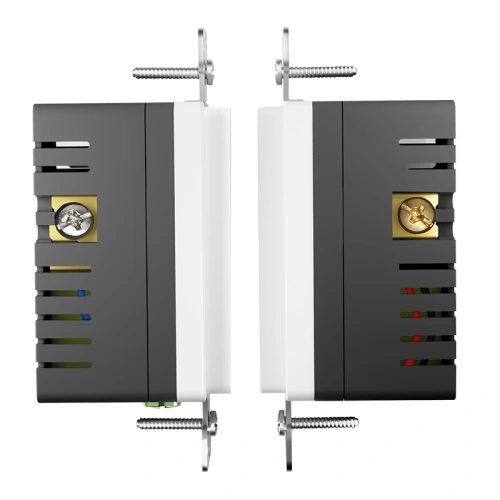

Product Overview
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
