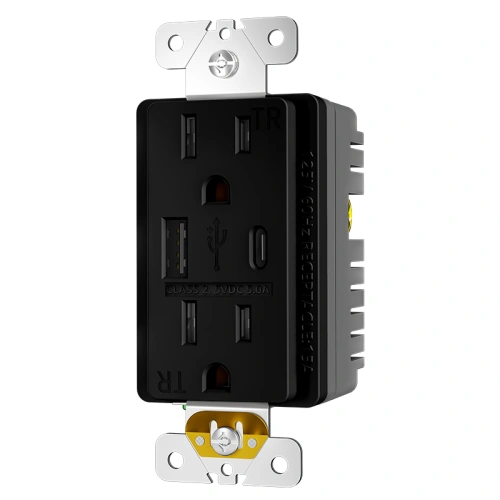

15A High Output 5.0A Combination USB Receptacle
- 15A NEMA 5-15R standard receptacle for indoor dry-location installations
- Hybrid charging design with one USB-A port and one USB-C port
- High-output 5V 5.0A total USB capacity for stronger two-device charging
- Tamper-resistant shutters support covered NEC 406.12 installation locations
- Standard indoor receptacle design — not GFCI and not weather resistant
- Wall plate included

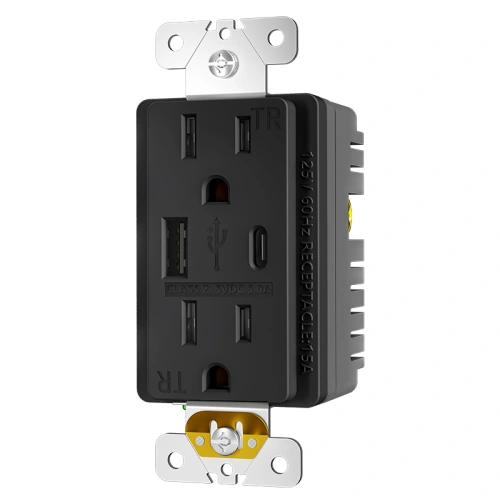

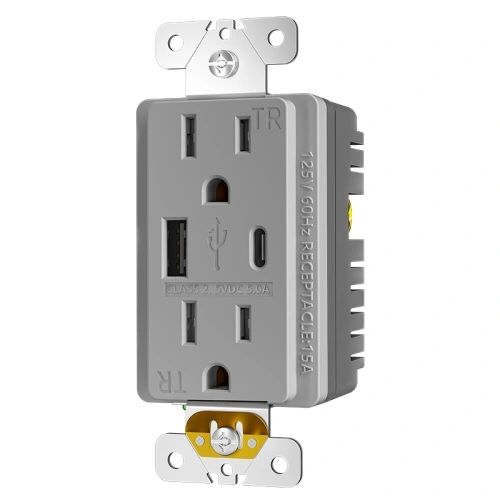

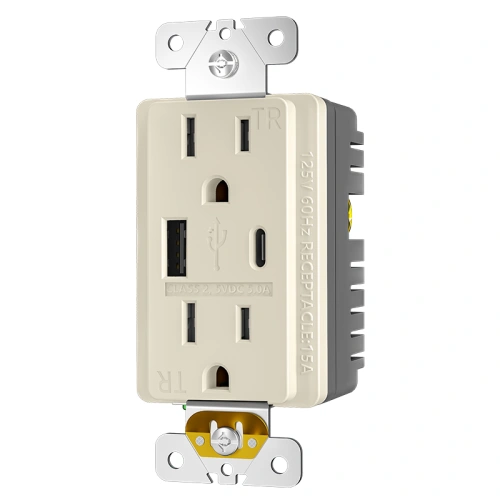

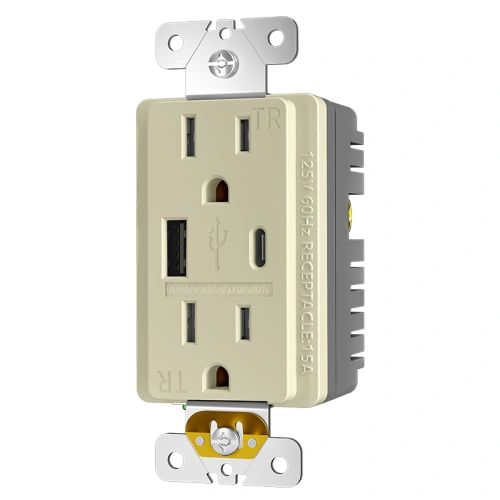

Available Colors
5A Hybrid Charging for Guest Rooms and Bedrooms Description
This model 5.0A combination USB receptacle is best understood as a premium 15A standard receptacle with stronger hybrid charging, not as a generic USB wall outlet. It combines a NEMA 5-15R duplex receptacle, one USB-A port, and one USB-C port in a single device built for indoor dry locations where users may arrive with mixed cable types. The real reason to specify this SKU over a lower-output A+C alternative is its 5.0A total USB capacity, which is aimed at reducing the slowdown that often appears when two devices charge at the same time.
Who Should Use This Model
- Hospitality buyers upgrading hotel nightstands and guest bedside charging points
- Property managers modernizing premium apartments and long-stay units
- Contractors specifying indoor dry-location outlets for mixed-device charging
- Distributors sourcing higher-output A+C receptacles for B2B project supply
When to Choose a Different Model
- Choose a 3.6A hybrid USB A/C receptacle when project budget matters more than simultaneous charging performance
- Choose a USB GFCI receptacle when the installation is near sinks, vanities, or other NEC-covered wet or damp locations
- Choose a PD or laptop-oriented USB-C charger receptacle when the project expects laptop charging rather than standard 5V USB charging
High-Output Type A/C Wall Outlet Specifications
| Product Code | SXUT1550C |
| Certified Safety | UL, cUL |
| GFCI Type | None |
| Voltage | 125V |
| Amperage | 15A |
| NEMA | 5-15R |
| USB Rating | 5.0A, 5V DC |
| USB A | 5V DC 2.4A |
| USB C | 5V DC 2.4A |
| Color | White,Ivory,Almond,Black,Grey,Brown,Graphite |
| Finish | Satin |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |
| Features | High Output USB Charging, Tamper Resistant, Standard Receptacle |

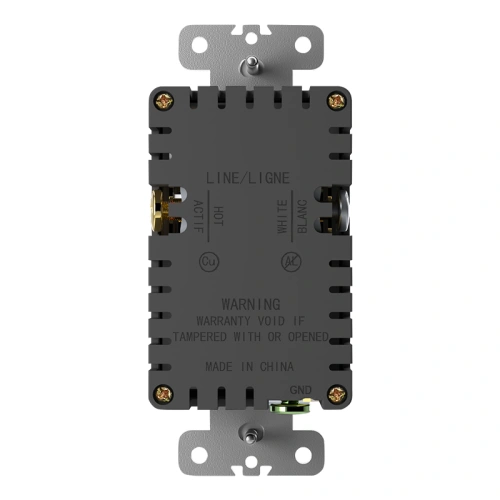

| Wiring Method | Back Wire and Side Wire |
| Pole | 2 |
| Wire | 3 |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Grounding | Self Grounding |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
What is the benefit of a 5A total output over a standard 3.6A hybrid USB outlet?
A 3.6A hybrid outlet has less charging headroom when two devices are plugged in, so charging speed can drop more noticeably during simultaneous use. A 5.0A total output design provides more internal charging capacity and is better suited to spaces where both the USB-A port and USB-C port may be used at the same time.
Will the USB-C port fast-charge my laptop?
No. This receptacle provides standard 5V USB charging and does not support the higher-voltage Power Delivery protocols required for laptop charging. It is intended for smartphones, tablets, and similar portable devices rather than notebook computers.
Can I install this 5A hybrid USB receptacle near a kitchen sink or bathroom vanity?
No. This is a standard receptacle designed for dry indoor locations and it does not provide GFCI protection. Receptacles serving kitchen countertops, bathroom areas, and similar NEC-covered wet or damp locations should use a GFCI or USB GFCI model instead.

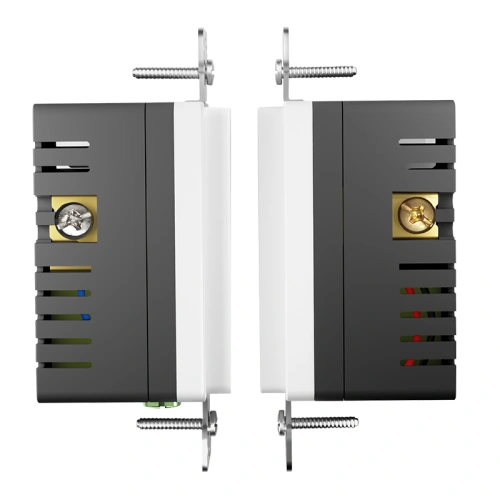

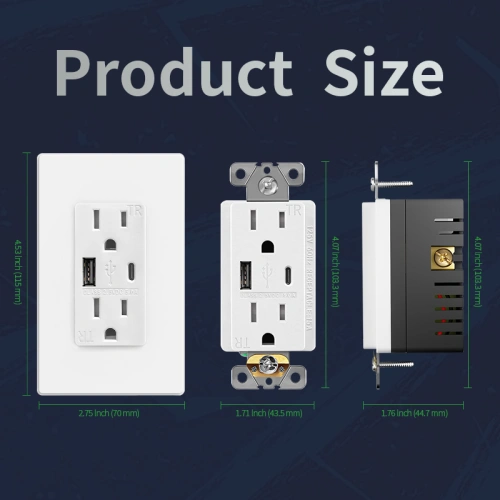

Does this 5A high-output A/C outlet require a deeper electrical box?
Yes, that is strongly recommended. A 25W internal USB charging module takes more space than a standard non-USB receptacle, and contractors should account for device depth, conductor size, and NEC 314.16 box fill requirements during installation planning.
Are the AC slots on this standard receptacle tamper-resistant?
Yes. The 15A NEMA 5-15R AC slots include built-in tamper-resistant shutters that block the insertion of foreign objects. NEC 406.12 requires tamper-resistant construction for covered 15A and 20A nonlocking receptacles in locations such as dwelling units, hotel guest rooms, and child care facilities.
Can two devices still charge strongly at the same time on this outlet?
Yes. That is the main reason to choose a 5.0A total output model. It is built for stronger simultaneous charging performance than common 3.6A hybrid USB receptacles, which makes it better suited to hotel nightstands, premium bedrooms, and other mixed-device charging environments.
Why choose this model over a dual USB-A or dual USB-C receptacle?
This model is built for projects that need both legacy USB-A compatibility and newer USB-C compatibility in the same wall location. It is especially useful where property owners cannot assume that every occupant will carry only one cable type.
Where should this model not be installed?
It should not be installed in wet or damp locations without proper GFCI protection, outdoors, or in projects expecting laptop-class PD charging. It is designed for premium indoor dry spaces that need stronger everyday mixed-device charging.
Premium Bedroom USB Charging Upgrade Applications
Offices & Workstations
Replaces loose adapters at every desk. One device delivers 120V AC plus USB charging from a single gang box.
UL · cUL · NEC 406.3
Hotel Guest Rooms
Guests charge phones and tablets without front-desk adapters. USB-A and USB-C handle mixed devices on every visit.
UL · cUL · Hospitality Spec
Residential Bedrooms
Swap a standard duplex for USB-A + USB-C in the same box. Installs on any 15A branch circuit.
UL · cUL · TR · NEC 406.12
Retail & Waiting Areas
Lobbies, clinics, and retail counters add customer-facing USB charging without surface power strips or floor stations.
UL · cUL · Commercial Duty
No-Throttling 5A Hybrid Outlet for Hospitality Video
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
