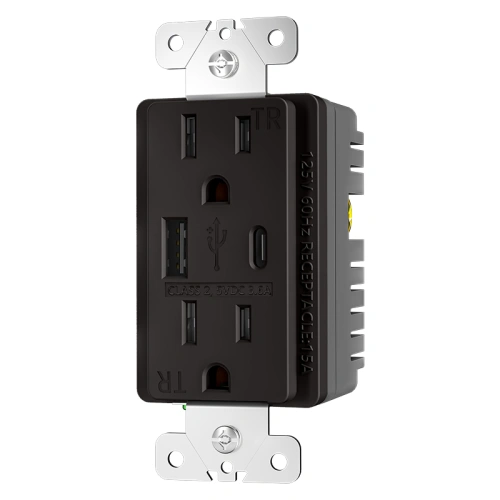

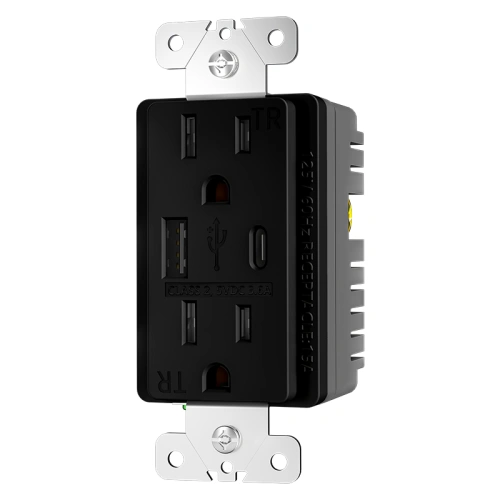

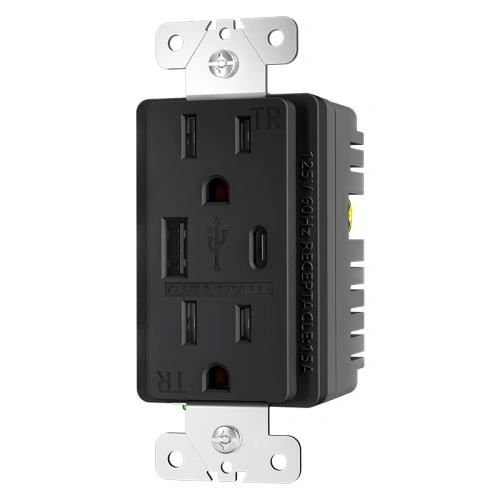

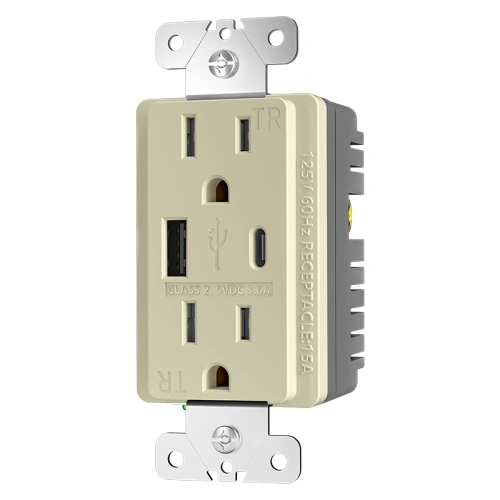

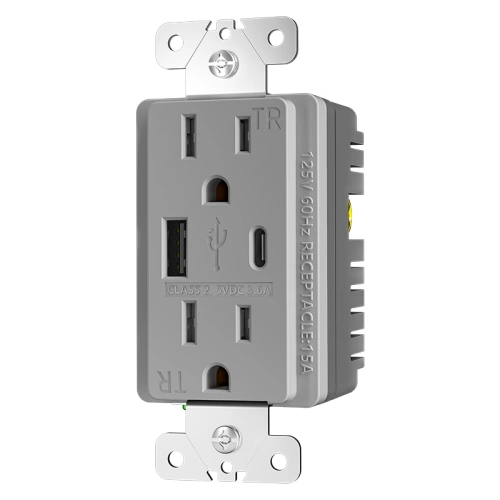

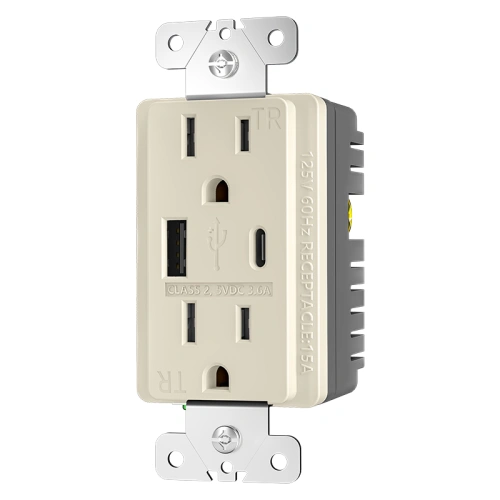

15A USB Type A/C Receptacle
- Tamper-resistant AC receptacle helps support indoor safety requirements under NEC 406.12
- UL/cUL listed for North American market applications
- Hybrid charging with one USB-A port and one USB-C port
- 3.6A shared USB output at 5V DC for everyday charging needs
- NEMA 5-15R configuration with back-wire and side-wire installation
- Wall plate included
Available Colors
What Is a 15A USB A/C Receptacle?
A 15A USB type a/c receptacle is a standard indoor wall outlet that combines a 15A, 125V, NEMA 5-15R AC receptacle with one USB-A port and one USB-C port. This model includes tamper-resistant shutters, 3.6A shared USB output at 5V DC, and a dry-location indoor design for everyday charging access without plug-in adapters. It is a practical choice for bedrooms, living spaces, hotel nightstands, and multi-family retrofit projects that need both legacy USB-A and newer USB-C compatibility.
Who Should Use This Model
- Contractors sourcing indoor USB wall outlet upgrades
- Hospitality buyers upgrading hotel nightstands and guest charging points
- Property management teams modernizing apartments and multi-unit interiors
- Distributors building out hybrid USB A/C receptacle inventory for indoor dry-location projects
When to Choose a Different Model
- Choose a USB GFCI receptacle when the installation location requires ground-fault protection, such as kitchen or bathroom countertop areas
- Choose a dual USB-A receptacle when USB-C compatibility is not needed
- Choose a PD or higher-output USB-C receptacle when the project needs faster charging than a 3.6A shared-output design
Hybrid USB Type A/C Wall Outlet Specifications
| Product Code | SMUT1536C |
| Certified Safety | UL, cUL |
| Voltage | 125V |
| Amperage | 15A |
| NEMA | 5-15R |
| USB Rating | 3.6A, 5V DC |
| USB A | 5V DC 2.4A |
| USB C | 5V DC 2.4A |
| Color | White,Ivory,Almond,Black,Grey,Brown,Graphite |
| Finish | Satin |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |

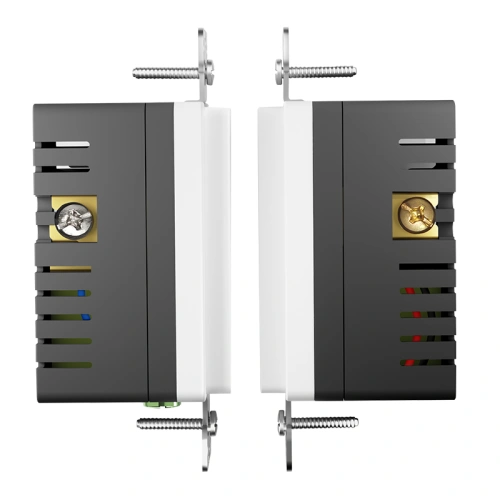

| Wiring Method | Back Wire and Side Wire |
| Pole | 2 |
| Wire | 3 |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Grounding | Self Grounding |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |

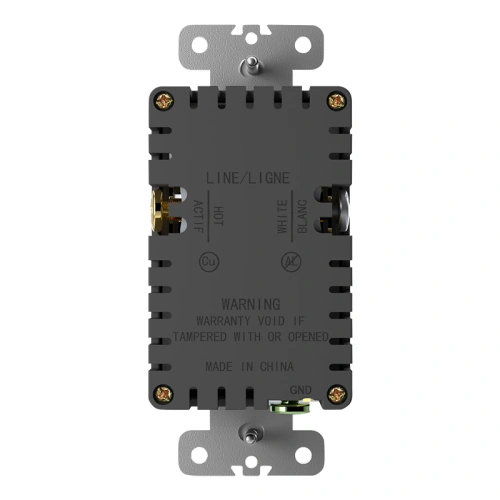

| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
Can I install this 15A USB A/C receptacle near a kitchen sink?
No. This is a standard receptacle designed for dry indoor locations and it does not provide GFCI protection. Receptacles near kitchen sinks, bathroom vanities, and similar NEC-covered locations should use a GFCI or USB GFCI model instead of this standard non-GFCI outlet.
What does a 3.6A shared output mean on this hybrid USB outlet?
The USB-A port and USB-C port share a combined 3.6A output at 5V DC. A single device can draw up to 2.4A from one port; when two devices charge at the same time, the current is shared between both ports up to the 3.6A total. Actual charging speed depends on each device’s charging behavior.
Will the USB-C port fast-charge a laptop?
No. This model uses standard 5V USB charging and does not support laptop-class USB-C Power Delivery. It is better suited to phones, tablets, e-readers, and other everyday portable devices.
Are the AC slots on this receptacle tamper-resistant?
Yes. The 15A NEMA 5-15R AC slots include tamper-resistant shutters that block foreign object insertion. NEC 406.12 requires tamper-resistant construction for covered 15A and 20A nonlocking receptacles in locations such as dwelling units, hotel guest rooms, and child care facilities.
Why choose a hybrid USB A/C outlet instead of a dual USB-A outlet?
A hybrid USB A/C outlet supports both legacy USB-A charging cables and newer USB-C charging cables in one wall device. That makes it a practical choice for apartment, hospitality, and rental projects where users may bring different cable types.
Does this USB receptacle require a special electrical box?
No special box type is required by default, but installers should confirm that the wall box has enough space for the device body and conductors. This receptacle installs in a standard single-gang wall box and uses standard 125V AC branch-circuit wiring.
Can this USB A/C receptacle replace a standard wall outlet?
Yes. This device installs in the same standard single-gang wall box as a conventional duplex receptacle and uses the same 125V AC wiring. The built-in USB charging ports draw power from the same branch circuit, so no additional low-voltage wiring is needed during replacement.
Is this model weather-resistant?
No. This product is not a WR model and is intended for indoor dry-location use only. It should not be used as an outdoor or wet-location receptacle.
15A USB A and C Receptacle Applications
Offices & Workstations
Replaces loose adapters at every desk. One device delivers 120V AC plus USB charging from a single gang box.
UL · cUL · NEC 406.3
Hotel Guest Rooms
Guests charge phones and tablets without front-desk adapters. USB-A and USB-C handle mixed devices on every visit.
UL · cUL · Hospitality Spec
Residential Bedrooms
Swap a standard duplex for USB-A + USB-C in the same box. Installs on any 15A branch circuit.
UL · cUL · TR · NEC 406.12
Retail & Waiting Areas
Lobbies, clinics, and retail counters add customer-facing USB charging without surface power strips or floor stations.
UL · cUL · Commercial Duty
UL Listed USB Type A/C Receptacle Overview
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
