NEMA 5-20R GaN Dual USB-C Fast Charging Receptacle
- UL Listed: Certified for North American applications.
- 20 Amp Rating: Uses a NEMA 5-20R outlet format for 20A projects.
- Pure Dual USB-C: Designed for an all-Type-C charging layout.
- GaN 36W Charging: Face marking confirms a higher-output fast charging design.
- 36W Max Total Output: Available USB power is shared within the device limit.
Why Choose ShengYu
- North America Market Expertise
- Stable Production, Reliable Quality
- OEM / ODM for Brand Growth
- Commercial Project Supply Support
- Private Label & Packaging Customization
Available Colors
20A GaN Dual USB-C Receptacle Description
A 20A 36W GaN dual USB-C receptacle gives this page a stronger specification story than a standard USB outlet or a lower-output mixed-port design. With a NEMA 5-20R 20 amp receptacle, a pure dual Type-C layout, PD 36W fast charging, tamper resistant shutters, and a 36W maximum total USB output, it fits projects that want both 20A outlet recognition and higher-output USB-C charging at the wall.
NEMA 5-20R Pure Type-C Outlet Features
| Product Code | SMUT20PD36C |
| Certified Safety | UL, cUL |
| Voltage | 125V |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | PD36W |
| USB C | PD UP TO 36W |
| USB C | PD UP TO 36W |

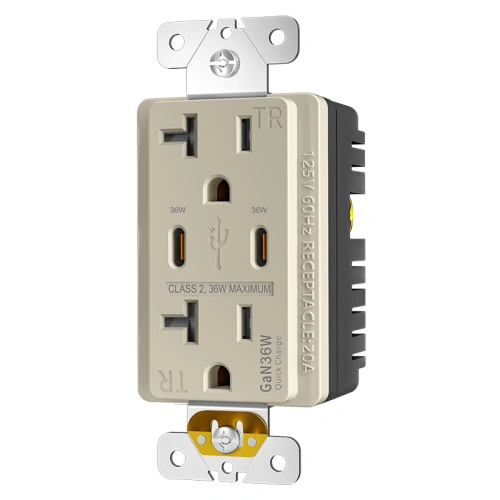

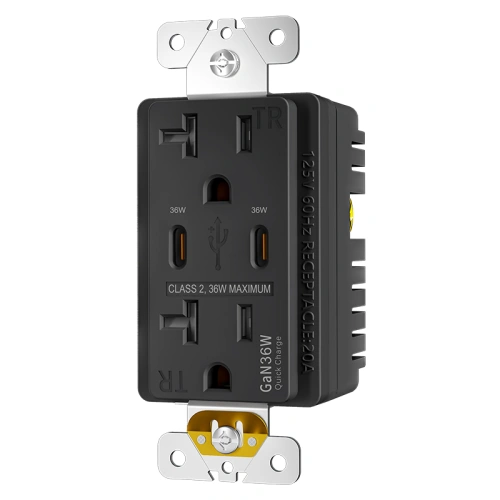

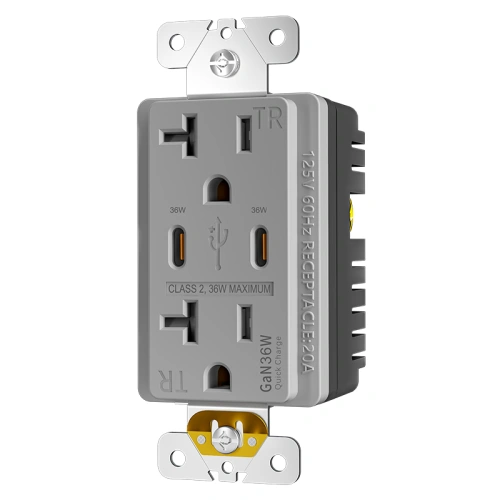

| Color | White,Ivory,Almond,Black,Grey,Brown,Graphite |
| Finish | Satin |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |

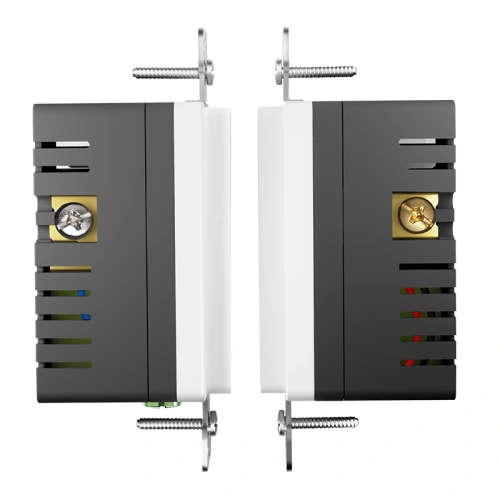

| Wiring Method | Back Wire and Side Wire |
| Pole | 2 |
| Wire | 3 |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Grounding | Self Grounding |
| Trip Level | None |

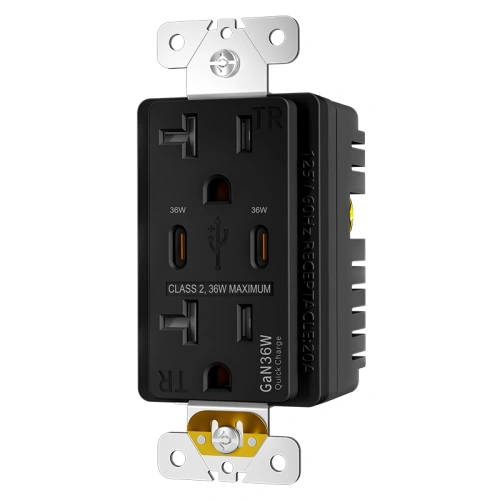

| Tamper Resistant | Yes |
| Weather Resistant | None |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |

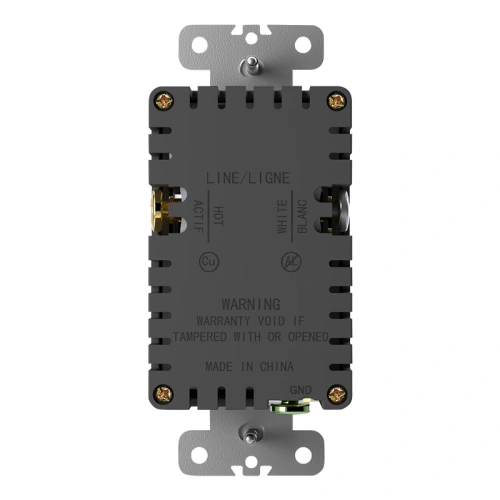

| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
Why choose a 20A dual USB-C GaN receptacle for project upgrades?
This model combines a 20A NEMA 5-20R receptacle format with a pure dual USB-C charging layout and higher-output PD charging. That makes it a stronger fit for projects that want both recognizable 20 amp outlet capacity and a more current Type-C charging format.
What does the NEMA 5-20R T-slot indicate?
The T-slot face identifies the receptacle as a NEMA 5-20R 20 amp outlet configuration, helping distinguish it from a standard 15A receptacle format.
Does this pure Type-C outlet support true PD 36W fast charging?
Yes. The product information confirms PD 36W fast charging, and the face marking identifies the device as a GaN 36W charging receptacle.
How is charging power handled when both USB-C ports are used at the same time?
This receptacle provides a maximum combined USB output of 36W. When both USB-C ports are used at the same time, the available charging power is shared within that total limit.
Can this 36W wall receptacle charge tablets or some USB-C laptops?
It can be positioned for higher-power charging scenarios than a standard 20W receptacle, including many tablets and some USB-C laptops. Actual charging speed depends on the connected device and its power requirements.
Does this product require a deeper electrical box?
Specific electrical box depth or cubic inch requirements are not confirmed in the current product information and should be checked against the product dimensions and installation conditions.
Typical Applications
Bathrooms
NEC mandated wet location protection for hospitality and malls.
Kitchens
Reliable safety for general-use countertops near sinks.
Laundry Areas
Rugged protection for damp basements and vehicle service areas.
Multi-Unit Housing
Cost-effective, UL-listed safety for large-scale apartments.
Product Overview
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
