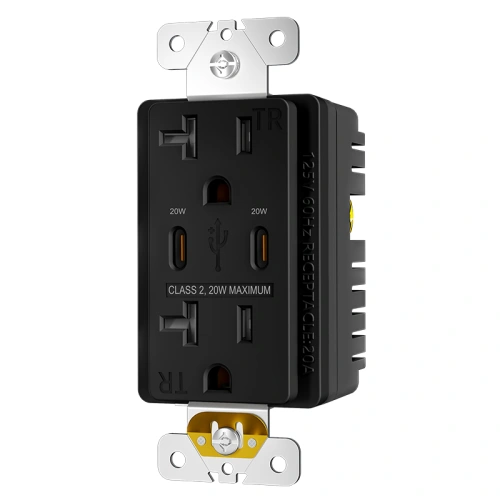

20A 20W PD Dual USB-C Receptacle
- 20A NEMA 5-20R receptacle format for properly matched commercial branch circuits
- Pure dual USB-C design for future-ready charging deployment
- USB-C Power Delivery up to 20W for rapid smartphone and tablet charging
- 20W maximum total USB output with smart dual-port power allocation
- Tamper-resistant shutters support covered NEC 406.12 installation locations
- Standard indoor receptacle design — not GFCI and not weather resistant
Available Colors
Future-Proof Commercial Charging with Pure Dual USB-C
This product 20A 20W PD dual USB-C receptacle is built for commercial projects that want to stop designing around outdated USB-A charging. The AC side remains a true 20A NEMA 5-20R receptacle, but the charging side is fully shifted to dual USB-C with 20W Power Delivery, which makes the wall device feel aligned with current and near-future device habits. The real value of this SKU is that it gives specifiers a way to combine commercial heavy-duty branch-circuit compatibility with visible fast charging for phones and tablets, while keeping the product below the cost tier of laptop-class wall chargers.
Who Should Use This Model
- Facility managers upgrading executive boardrooms, VIP lounges, and premium public interiors
- Contractors specifying 20A dry-location receptacles with pure Type-C fast charging
- Hospitality and airport procurement teams modernizing guest-facing charging infrastructure
- B2B distributors sourcing spec-grade dual USB-C PD receptacles for commercial projects
When to Choose a Different Model
- Choose a 20A PD/QC hybrid receptacle when the project still needs legacy USB-A compatibility
- Choose a 20A 5A dual USB-C receptacle when simultaneous 5V charging matters more than single-port PD fast charging
- Choose a GFCI USB model when the installation is near sinks or other NEC-covered wet or damp locations
20A Dual USB-C PD Receptacle Technical Specifications
| Product Code | SMUT20PD20C |
| Certified Safety | UL, cUL |
| GFCI Type | None |
| Voltage | 125V |
| Amperage | 20A |
| NEMA | 5-20R |
| USB Rating | 20W Maximum Total Output |
| USB C Port 1 | Power Delivery (PD) 20W Max |
| USB C Port 2 | Power Delivery (PD) 20W Max |

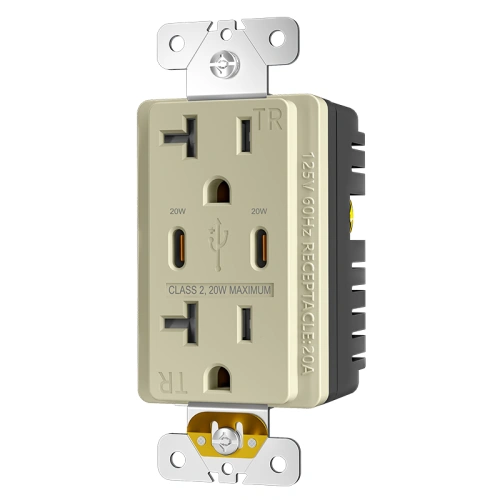

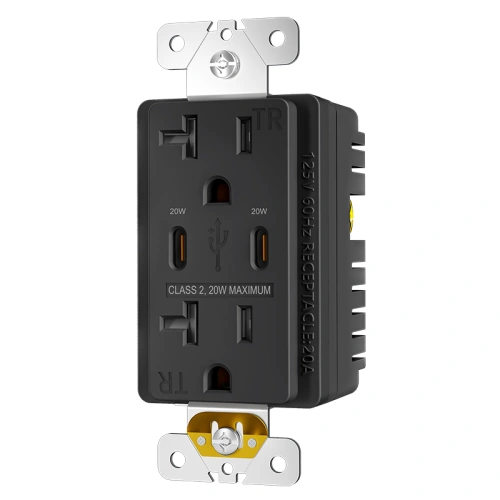

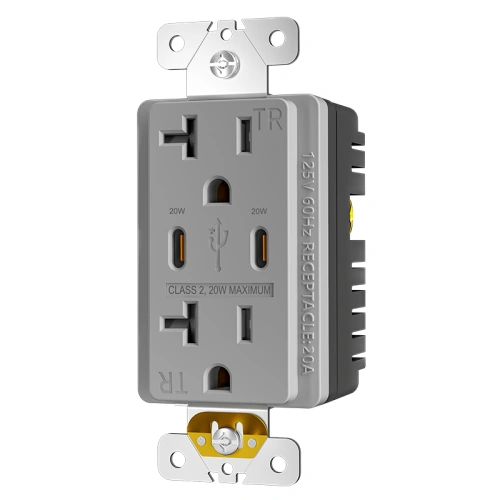

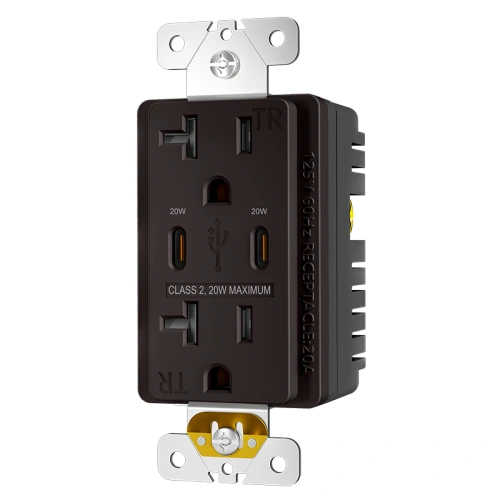

| Color | White, Ivory, Almond, Black, Grey, Brown, Graphite |
| Finish | Satin |
| Operating Temperature | -35C to 66C (-30F to 150F) |
| Application Sector | Commercial, Premium Public Interior, Hospitality, Corporate |
| Features | Dual USB-C Power Delivery, Fast Charging, Tamper Resistant, Standard Receptacle |

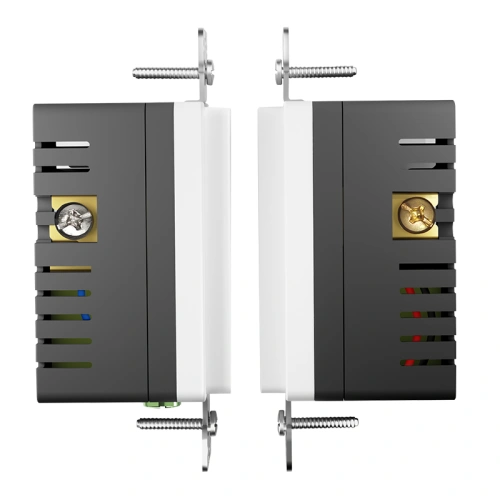

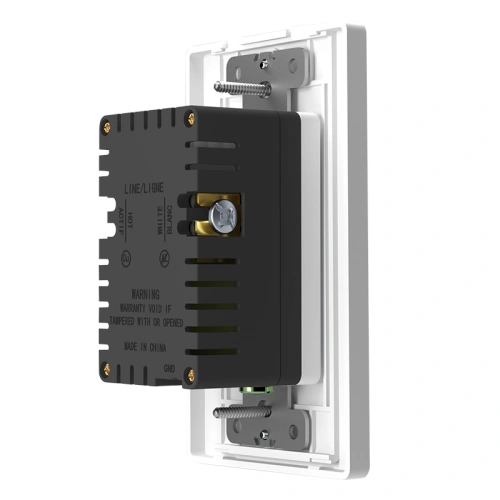

| Wiring Method | Back Wire and Side Wire |
| Pole | 2 |
| Wire | 3 |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Grounding | Self Grounding |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |

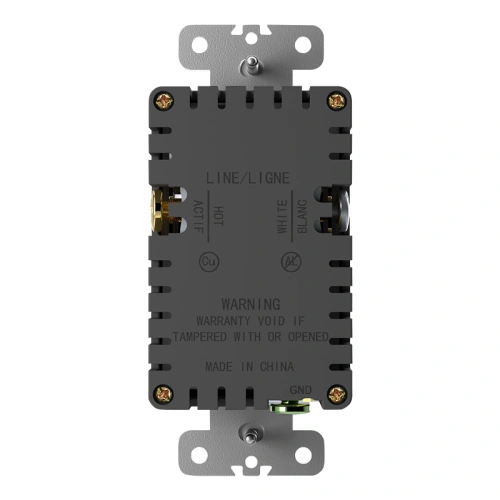

| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
What happens when two devices are plugged into the dual USB-C ports at the same time?
The receptacle has a maximum combined USB output of 20W. When one device is connected, that port can use the full 20W Power Delivery capability. When both USB-C ports are used at the same time, the internal control system shares the 20W maximum output between the two devices.
Will this 20A dual USB-C PD receptacle fast-charge a laptop or MacBook?
No. This receptacle supports up to 20W Power Delivery, which is intended for smartphones, tablets, and similar mobile devices. Most laptops and MacBooks require much higher wattage and should use a dedicated laptop charger instead.
Can I install this 20A dual USB-C PD receptacle on a standard 15A office circuit?
No. NEC 210.21(B)(3) does not permit a 20A receptacle to be installed on a 15A branch circuit. Because this model uses a NEMA 5-20R configuration, it must be installed on a correctly matched 20A circuit.
Does this pure Type-C fast-charging outlet include GFCI protection?
No. This is a standard commercial receptacle designed for indoor dry locations and it does not include GFCI protection. Installations near sinks or other NEC-covered wet or damp locations should use a GFCI or USB GFCI model instead.
Do commercial waiting rooms and similar public spaces require tamper-resistant shutters?
Yes, in NEC-covered locations. NEC 406.12 requires tamper-resistant construction for covered 15A and 20A nonlocking receptacles in listed occupancy types. This model includes tamper-resistant shutters on the AC receptacle slots.
Does this 20W PD dual USB-C outlet require a deeper electrical box?
Yes. A higher-output USB charging module plus 20A branch-circuit conductors usually require more box space than a standard non-USB outlet. Installers should account for device depth, conductor size, heat dissipation, and NEC 314.16 box fill requirements during planning.
Why choose pure dual USB-C instead of a hybrid USB A/C receptacle?
A pure dual USB-C receptacle is a better fit for projects that want to remove legacy USB-A from visible guest-facing infrastructure. It aligns the space with current device habits and avoids building yesterday’s cable mix into tomorrow’s commercial interiors.
Where should this model not be installed?
It should not be installed on 15A circuits, in wet or damp locations without proper GFCI protection, outdoors, or in projects expecting laptop-class charging. It is designed for premium indoor dry spaces where fast mobile-device charging is the priority.
Where Pure Type-C Fast Charging Makes the Most Sense Applications
Offices & Workstations
Replaces loose adapters at every desk. One device delivers 120V AC plus USB charging from a single gang box.
UL · cUL · NEC 406.3
Hotel Guest Rooms
Guests charge phones and tablets without front-desk adapters. Dual USB-C handle mixed devices on every visit.
UL · cUL · Hospitality Spec
Residential Bedrooms
Swap a standard duplex for dual USB-C in the same box. Installs on any 20A branch circuit.
UL · cUL · TR · NEC 406.12
Retail & Waiting Areas
Lobbies, clinics, and retail counters add customer-facing USB charging without surface power strips or floor stations.
UL · cUL · Commercial Duty
Why Dual USB-C and 20A Capacity Change Commercial Design Video Overview
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
