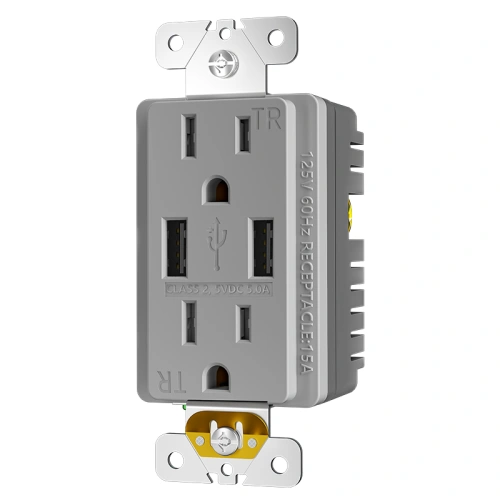

15A High Output 5.0A USB Receptacle
- UL/cUL Listed: Certified for North American applications.
- 15 Amp Rating: Designed for standard indoor wall installations.
- High Output USB Charging: Provides up to 5V 5.0A total output.
- Tamper Resistant: Built with protective safety shutters.
- Dual USB Ports: Supports higher everyday charging demand.
Why Choose ShengYu
- North America Market Expertise
- Stable Production, Reliable Quality
- OEM / ODM for Brand Growth
- Commercial Project Supply Support
- Private Label & Packaging Customization
Available Colors
Product Description
A 5.0A USB receptacle is a 15A indoor wall outlet with dual USB ports, tamper resistant shutters, and UL and cUL listing. With a maximum total USB output of 5V 5.0A, it is designed for hospitality, education, healthcare, residential, and other indoor applications that require higher charging capacity.
20A Dual USB-C Receptacle Features
| Product Code | SXUT1550 |
| Certified Safety | UL, cUL |
| Voltage | 125V |
| Amperage | 15A |
| NEMA | 5-15R |
| USB Rating | 5.0A, 5V DC |
| USB A | 5V DC 2.4A |
| USB A | 5V DC 2.4A |

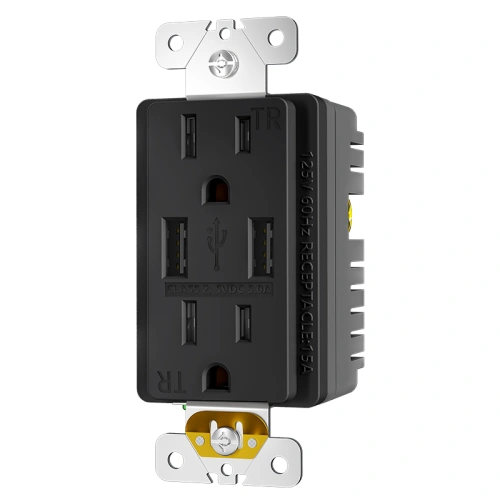

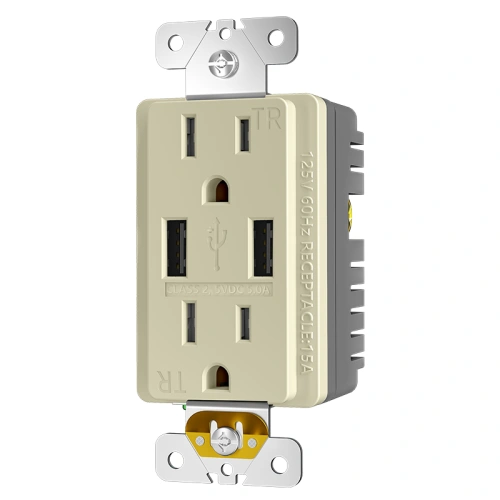

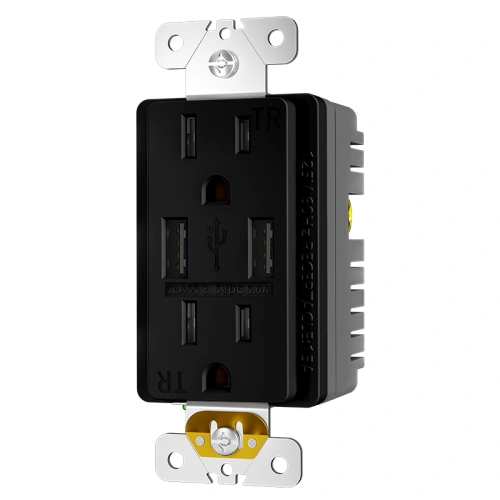

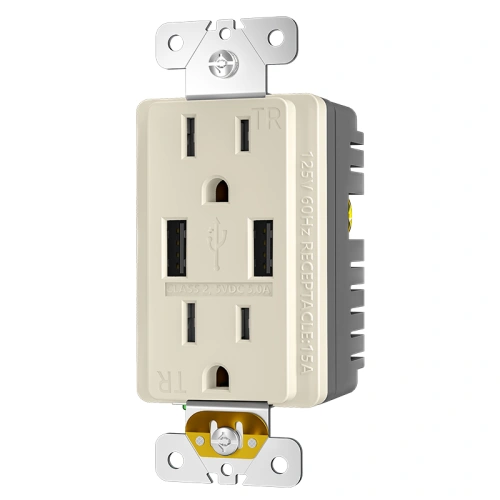

| Color | White,Ivory,Almond,Black,Grey,Brown,Graphite |
| Finish | Satin |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |

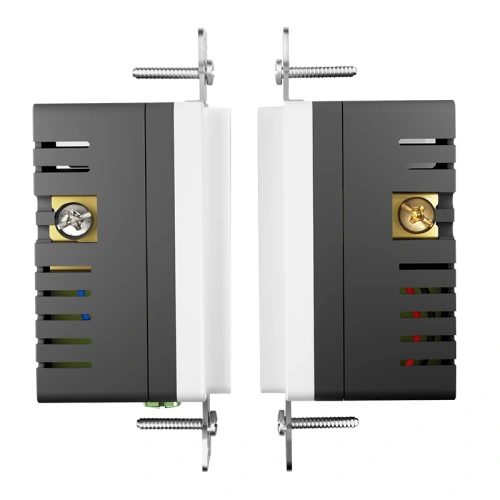

| Wiring Method | Back Wire and Side Wire |
| Pole | 2 |
| Wire | 3 |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Grounding | Self Grounding |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |

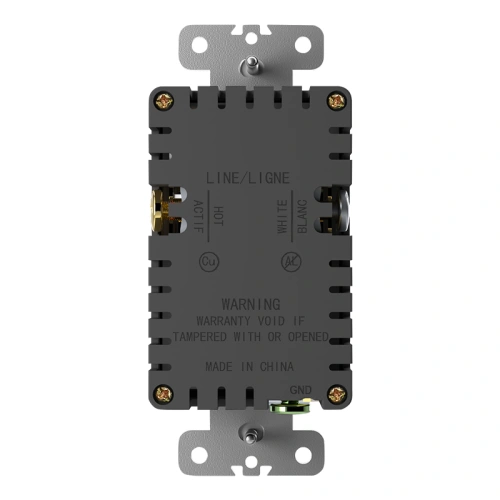

| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
What is a 5.0A USB receptacle?
A 5.0A USB receptacle is a wall outlet that combines standard receptacle access with dual USB charging and a maximum total USB output of 5V 5.0A.
How is a 5.0A USB outlet different from a 3.6A model?
A 5.0A USB outlet provides a higher total charging output than a 3.6A model, which can be useful in spaces where more than one device may need charging at the same time.
Can two devices be charged at once?
Yes. The receptacle includes dual USB ports, and the maximum total USB output is 5V 5.0A across both ports.
Is this high output USB receptacle tamper resistant?
Yes. Built-in tamper resistant shutters are included for added everyday safety.
Where is a 5.0A USB receptacle commonly used?
Common applications include hotel rooms, classrooms, libraries, patient rooms, lounges, family rooms, and other indoor spaces with higher everyday charging demand.
Does this product require a deeper electrical box?

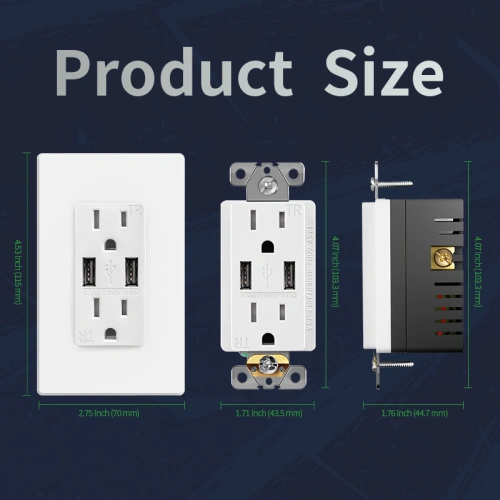

Electrical box depth requirements are not confirmed in the current product information and should be checked against the product dimensions and installation conditions.
Typical Applications
Bathrooms
NEC mandated wet location protection for hospitality and malls.
Kitchens
Reliable safety for general-use countertops near sinks.
Laundry Areas
Rugged protection for damp basements and vehicle service areas.
Multi-Unit Housing
Cost-effective, UL-listed safety for large-scale apartments.
Product Overview
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
