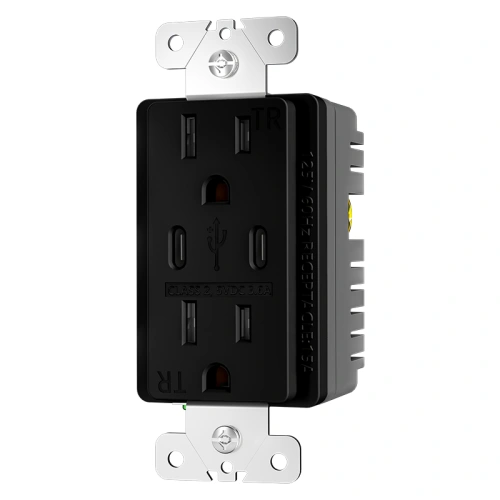

15A Dual USB-C Receptacle
- UL/cUL Listed: Certified for North American applications.
- 15 Amp Rating: Designed for standard indoor wall installations.
- Dual USB-C Ports: Supports pure Type-C charging access.
- Tamper Resistant: Built with protective safety shutters.
- 5V 3.6A Max Output: Suitable for everyday charging needs.
Why Choose ShengYu
- North America Market Expertise
- Stable Production, Reliable Quality
- OEM / ODM for Brand Growth
- Commercial Project Supply Support
- Private Label & Packaging Customization
Available Colors
Two Type-C Ports in One Wall Description
A dual USB-C receptacle is a 15A indoor wall outlet with two Type-C ports, tamper resistant shutters, and UL and cUL listing. With a maximum total USB output of 5V 3.6A, it is designed for hospitality, multifamily, residential, and other indoor charging applications.
Dual USB-C Receptacle Features
| Product Code | CMUT1536C |
| Certified Safety | UL, cUL |
| Voltage | 125V |
| Amperage | 15A |
| NEMA | 5-15R |
| USB Rating | 3.6A, 5V DC |
| USB C | 5V DC 2.4A |
| USB C | 5V DC 2.4A |

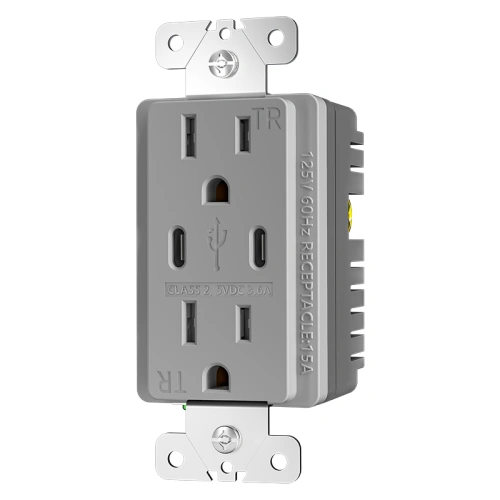

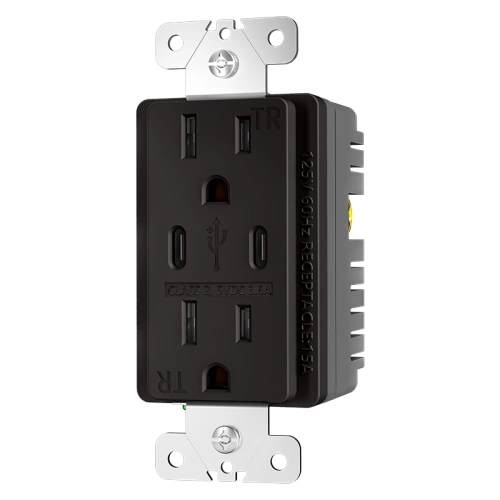

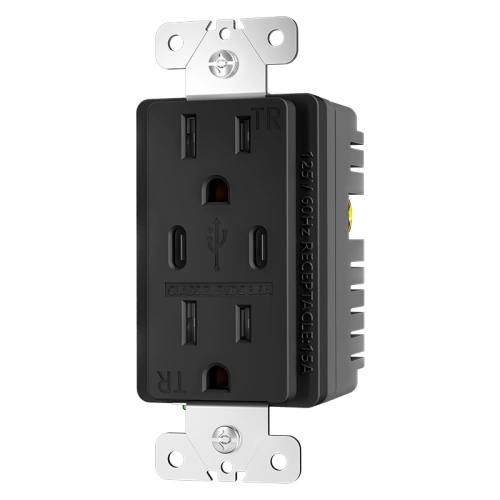

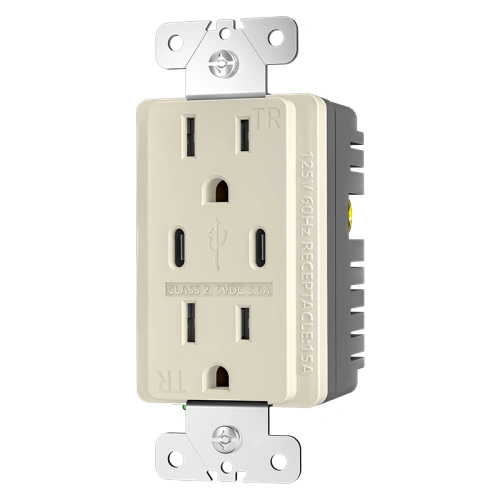

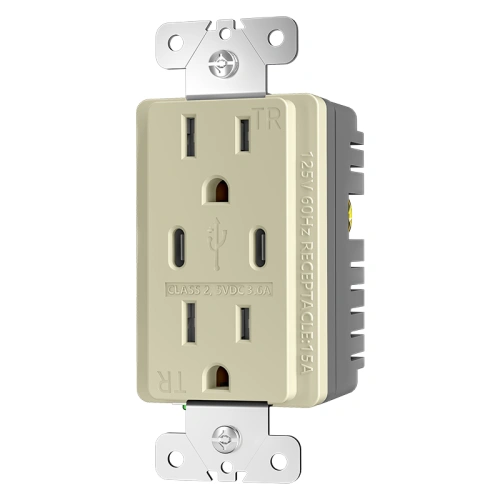

| Color | White,Ivory,Almond,Black,Grey,Brown,Graphite |
| Finish | Satin |
| Operating Temperature | -35C to 66C(-30F to 150F) |
| Application Sector | Commercial, Multi-Dwelling Unit, Residential |
| Wiring Method | Back Wire and Side Wire |
| Pole | 2 |
| Wire | 3 |
| Wall Plate Included | Yes |
| Number of Receptacles | 2 |
| Standards & Certifications | UL/CSA, NEMA WD6 |
| Grounding | Self Grounding |
| Trip Level | None |
| Tamper Resistant | Yes |
| Weather Resistant | None |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |

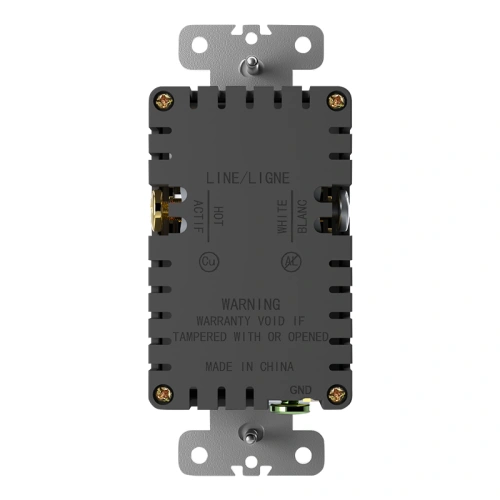

| Terminal | Brass-Hot, Green-Ground, Silver-Neutral |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
What is a dual USB-C receptacle?
A dual USB-C receptacle is a wall outlet that combines standard receptacle access with two USB-C charging ports in one indoor device.
Does this dual USB-C outlet support fast charging or Power Delivery?
No. The confirmed maximum total USB output is 5V 3.6A, so it is intended for standard charging rather than PD fast charging.
Can two devices be charged at the same time?
Yes. The outlet includes two USB-C ports, and the maximum total USB output is 5V 3.6A across both ports.
Is this receptacle tamper resistant?
Yes. Built-in tamper resistant shutters are included for added everyday safety.
Where is a dual USB-C receptacle commonly used?
Common applications include hotel guest rooms, bedrooms, dormitories, multifamily housing, and other indoor spaces where USB-C charging is preferred.
Does this product include a wallplate?
Wallplate inclusion is not confirmed in the current product information and should be verified separately for the specific order or project requirement.
Typical Applications
Bathrooms
NEC mandated wet location protection for hospitality and malls.
Kitchens
Reliable safety for general-use countertops near sinks.
Laundry Areas
Rugged protection for damp basements and vehicle service areas.
Multi-Unit Housing
Cost-effective, UL-listed safety for large-scale apartments.
Product Overview
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
