15 Amp Tamper-Resistant Duplex Receptacle
- 15A 125V NEMA 5-15R tamper-resistant duplex receptacle for indoor branch-circuit use
- Built-in TR shutters support NEC 406.12 code-driven installations in required occupancies
- Standard non-WR indoor format for residential, hospitality, education, and care interiors
- Grounding duplex configuration for everyday project sourcing and replacement work
- Back wire and side wire termination support routine contractor installation workflows
- Available in seven finish options for large-volume color matching across interior projects
Available Colors
What does TR mean on a 15 amp receptacle Description
A 15 amp tamper resistant receptacle uses internal shutters that open only when simultaneous pressure is applied to both slots. NEC 406.12 requires listed TR receptacles in a broad set of residential, hospitality, education, care, public-access, and similar occupancies, which makes this device the baseline outlet type for many mainstream North American projects. This model is built as a non-WR standard indoor receptacle for code-driven interior installation rather than outdoor or water-exposed use. The real buying case is high-volume deployment: apartments, guest rooms, schools, clinics, dormitory units, and other spaces where TR is not optional but expected.
Who Should Use This Model
- Contractors wiring apartments, condos, single-family homes, and common residential areas where TR is required
- Hospitality buyers sourcing compliant guest room and guest suite receptacles
- Distributors carrying a high-volume 15A NEMA 5-15R TR outlet for daily replacement demand
- Project teams specifying education, child care, clinic, dormitory, and assisted-living interiors
When to Choose a Different Model
- Choose a WR TR receptacle for exterior, damp, or weather-exposed locations
- Choose a GFCI device where ground-fault protection is required by the installation
- Choose a 20A receptacle when the project requires NEMA 5-20R outlet geometry rather than standard 5-15R
NEMA 5-15R tamper resistant receptacle Specifications
| Product Code | TDT15 |
| Certified Safety | UL/cUL Listed |
| GFCI Type | Not GFCI |
| Voltage | 125V AC |
| Amperage | 15A |
| NEMA | 5-15R |
| USB Rating | None |
| USB A | None |
| USB C | None |

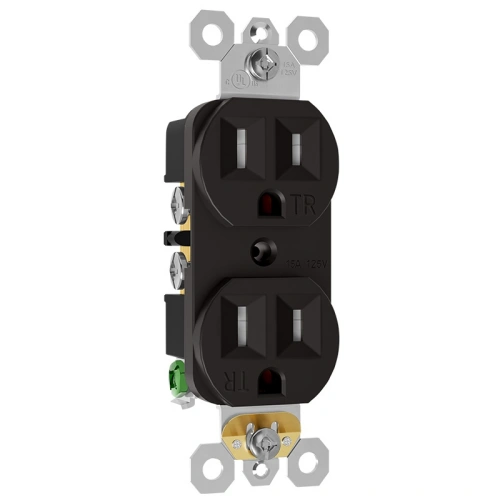

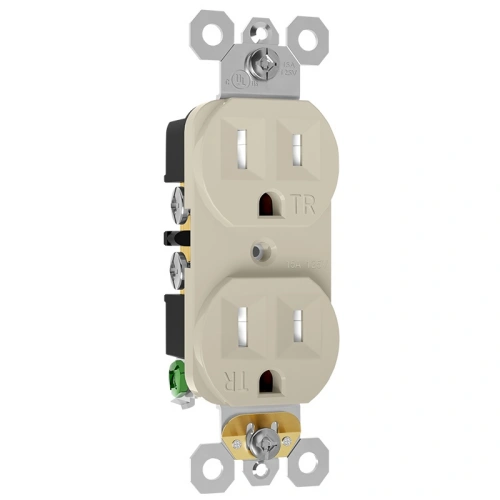

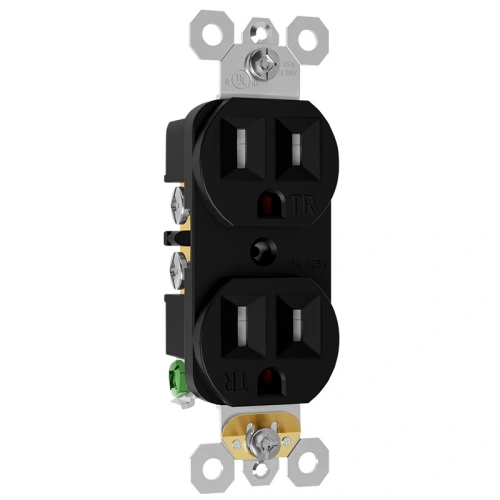

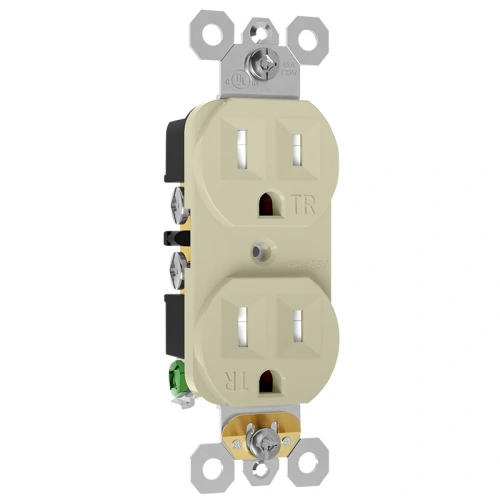

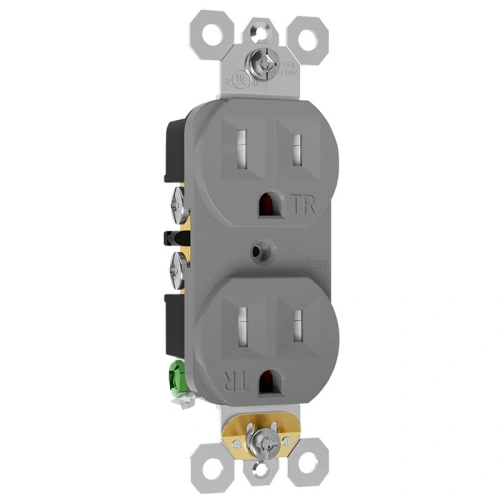

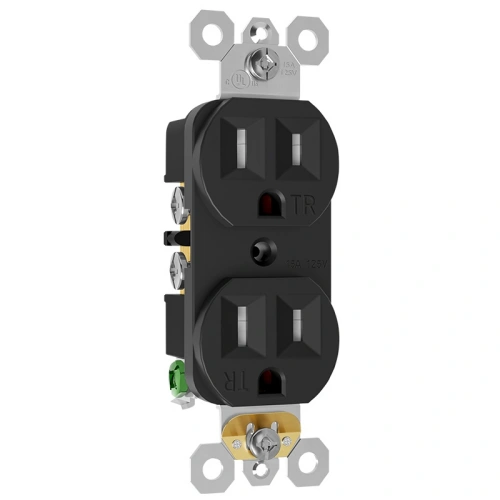

| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
| Finish | Standard smooth finish |
| Application Sector | Indoor residential, hospitality, education, clinic, dormitory, and care-facility replacement and project sourcing |
| Features | Standard duplex format, grounding type, TR shutters, non-WR |
| Wiring Method | Back Wire and Side Wire |
| Pole | 2-pole, 3-wire grounding |
| Wall Plate Included | Yes |
| Number of Receptacles | Duplex (2) |
| Standards & Certifications | UL Listed / UL 498 |
| Grounding | Yes |
| Trip Level | Not applicable |
| Safety Function | Tamper-resistant shutter protection |
| Tamper Resistant | Yes |
| Weather Resistant | No |
| Own US Patents | Yes |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Terminal | Side and Back Wire |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
What does the TR mark mean on this receptacle?
TR means tamper resistant. The receptacle uses internal shutters that stay closed unless equal pressure is applied to both slots by a plug.
Where does NEC 406.12 require tamper-resistant receptacles?
NEC 406.12 requires listed TR receptacles in dwelling units, hotel and motel guest rooms and guest suites and their common areas, child care facilities, preschools and education facilities, public-access business offices and waiting areas, places of awaiting transportation, gymnasiums, skating rinks, fitness centers, auditoriums, dormitory units, assisted living and similar care occupancies, foster care and nursing facilities, psychiatric hospitals, and public-access agricultural building areas.
Can plastic child-proof plug caps replace a TR receptacle for code compliance?
No. NEC 406.12 requires a listed tamper-resistant receptacle where that section applies. A standard non-TR receptacle with add-on plastic caps is not the same thing as a listed TR device.
Can a 15A TR duplex receptacle be installed on a 20A branch circuit?
Yes. NEC 210.21(B)(3) permits 15A receptacle ratings on a 20A circuit where the branch circuit supplies two or more receptacles or outlets. A duplex receptacle counts as two receptacles for this rule.
Is a tamper-resistant receptacle the same as a GFCI?
No. A TR receptacle uses mechanical shutters for insertion safety, while a GFCI device monitors current imbalance and trips on ground-fault conditions. This product provides TR protection only.
Why can TR receptacles feel tighter than standard outlets?
TR receptacles feel tighter because the shutter mechanism does not open when pressure is applied to only one slot. The plug must apply simultaneous pressure to both polarized slots before insertion occurs.
Can this receptacle be used outdoors or on a patio?
No. This model is tamper resistant, but it is not weather resistant. Use a WR-rated receptacle for outdoor or weather-exposed locations.
Is this product suitable for apartments, guest rooms, and education facilities?
Yes. Those are exactly the kinds of interior locations where NEC 406.12 makes TR protection part of the normal specification path for 15A and 20A nonlocking receptacles.
Where are tamper resistant receptacles required Applications
Office Interiors
15A or 20A covers desks, printers, and displays. Back-wire terminals speed crew installation across tenant build-outs.
UL · cUL · NEMA 5-15R / 5-20R
Residential Walls
Bedrooms, hallways, and living rooms outside NEC 210.8 GFCI zones. TR versions satisfy NEC 406.12 for new builds.
UL · cUL · TR · NEC 406.12
Retail & Commercial
Retail floors and checkouts need AC drops rated for commercial duty. 20A spec-grade handles heavier loads.
UL · cUL · 20A Commercial
Warehouse & Industrial
Packing stations and utility zones run shop tools and chargers. Holds 12 AWG stranded in back-wire.
UL · cUL · 20A · NEMA 5-20R
tamper resistant outlet vs standard outlet Video Overview
5-Step Quick Wiring Guide
Follow standard U.S. wiring protocols. Always verify power is off before installation.
- Power Off & Verify: Turn off the breaker and verify the box is de-energized with a voltage tester.
- Identify Conductors: Locate the Black (Hot), White (Neutral), and Bare/Green (Ground) wires.
- Connect Ground: Secure the bare copper or green wire to the Green grounding terminal.
- Connect Neutral & Hot: Connect the White wire to the Silver terminal, and the Black wire to the Brass terminal.
- Mount & Test: Fold wires neatly into the box, mount the receptacle, install the wall plate, and restore power to test.
