15A 120/277V 3-Way Rocker Switch
- 15A 120/277V 3-way rocker switch for two-location lighting control
- UL/cUL listing with UL file number E327438 and UL 20 coverage for switch product verification
- Blank rocker face without ON/OFF markings, as expected for 3-way switching operation
- Common and traveler terminal logic for stairways, corridors, suites, and dual-entry rooms
- Side wire, back wire, push-in wiring, self-grounding clip, thermoplastic body, and seven color options
Available Colors
3-Way Rocker Switch Selection Starts With the Wiring Layout
TM-5 Specs Buyers Should Check Before Matching Wallplates Specifications
| Product Code | TM-5 |
| Product Type | 3-way rocker switch |
| Switch Function | Controls one light or one load from two wall locations when used in a proper 3-way circuit |
| Certified Safety | UL/cUL listing |
| UL File Number | E327438 |
| Applicable Standard | UL 20 |
| Voltage | 120/277V AC |
| Amperage | 15A |
| Pole | 3-way |
| Switch Style | Rocker / paddle actuator |
| Face Marking | No fixed ON/OFF marking, as expected for 3-way mechanical switch operation |

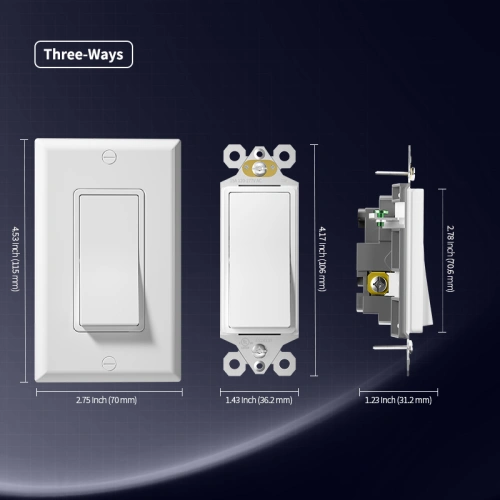

| Wallplate Compatibility | Requires decorator-style rectangular wallplate opening |
| Color | White, Black, Ivory, Almond, Grey, Brown, Graphite |
| Application Sector | Hotel suites, commercial corridors, dual-entry rooms, stairways, office lighting, apartment retrofits, and multi-location replacement projects |
| Wiring Method | Side wire, back wire, push-in |
| Terminal Layout | Common terminal, traveler terminals, and grounding connection for 3-way switch circuits |
| Grounding | Self-grounding clip: Yes |
| Neutral Required | No neutral termination for a standard mechanical 3-way rocker switch unless product instructions or another device type requires it |
| Wall Plate Included | No |
| Packaging | Individual box |
| Face Material | Thermoplastic |
| Body Material | Thermoplastic |
| Not for | Single-location switching where a single pole device is enough, 4-way circuits, dimming control, smart control, timer control, or wet-location applications unless a different listed device is selected |
| Country of Origin | China |
Frequently Asked Questions (FAQ)
Why does TM-5 need both a 3-way layout check and a voltage check?
Because this SKU combines two separate requirements. It is a 3-way switch for two-location control, and it is rated 120/277V AC for projects that may include commercial lighting circuits. Buyers should confirm both the wiring layout and branch-circuit voltage before ordering.
Why does this 3-way rocker switch have no ON/OFF marking?
A 3-way rocker switch normally has no fixed ON/OFF marking because the paddle position depends on the other 3-way switch in the circuit. In one switching sequence, the upper position may turn the light on; later, that same position may not mean on.
Can TM-5 replace a single pole rocker switch?
It may be possible in some wiring arrangements, but it is usually the wrong purchasing choice. TM-5 is built for 3-way common and traveler logic. If the project only needs one wall control point, a dedicated single pole rocker switch is simpler for stocking, installation, and future maintenance.
What wallplate does a 3-way rocker switch require?
TM-5 requires a decorator-style rectangular wallplate opening. It does not fit a traditional toggle wallplate. On hotel, apartment, and corridor jobs, buyers should confirm plate style and color at the same time as the switch order to avoid visible mismatch after installation.
Where does TM-5 fit better than a smart 3-way or dimmer?
TM-5 fits projects that need mechanical two-location control without dimming, scheduling, sensing, or app-based features. That makes it useful for basic corridor, suite, stairway, and facility replacement work. If the project specification calls for electronic control, choose a rated smart device or dimmer instead.
What should buyers check before adding TM-5 to a bulk order?
Check whether the project needs 3-way control, 120/277V compatibility, a decorator-style wallplate, matching colors, and related single pole or 4-way rocker devices. Also confirm UL/cUL listing, UL file number E327438, UL 20 coverage, wiring method, and self-grounding clip details.
Where 120/277V 3-Way Rocker Switches Make Sense
Hotel Suites
Fits rooms where one light needs rocker-style control from two entry points.
3-Way · 120/277V · Rocker
Commercial Corridors
Useful for two-location corridor switching where 277V lighting may appear in the schedule.
277V Ready · Common/Travelers
Stairway Controls
Supports top-and-bottom switching with a blank rocker face and no fixed ON/OFF marking.
Two Locations · Blank Paddle
Finished Wall Sets
Order with decorator-style wallplates to avoid mixing rocker switches with toggle plates.
Wallplate Match · 7 Colors
Video Review: Blank Paddle Face and Color Matching

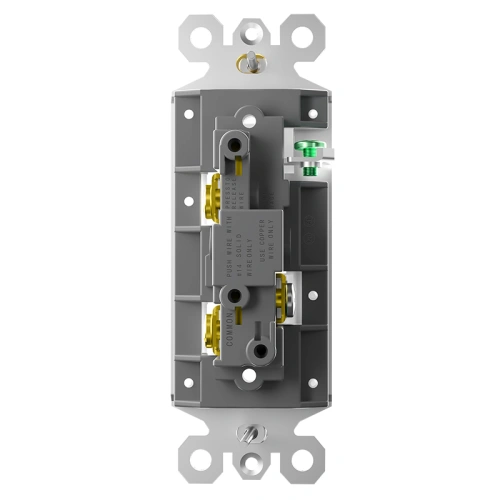

Wiring Notes for Common and Traveler Terminals
5-Step Quick 3-Way Rocker Wiring Guide
For standard mechanical 3-way rocker switches only. Always turn off power, verify both boxes are de-energized, and follow the terminal markings on the device body.
- Power Off & Confirm the Rating: Turn off the breaker, verify both switch boxes are de-energized with a voltage tester or multimeter, and confirm the circuit voltage matches the 120/277V switch rating.
- Verify It Is a 3-Way Circuit: Confirm the same light or load is controlled from two locations. Do not use this guide for single pole, 4-way, dimmer, timer, or smart switch wiring.
- Label the Common Wire: Before removing the old switch, identify and label the conductor connected to the common terminal. The common terminal is often darker or marked, but the device marking should be followed.
- Connect Common, Travelers, and Ground: Connect the tagged common conductor to the common terminal, connect the two traveler conductors to the traveler terminals, and connect the bare copper or green grounding conductor to the Green grounding terminal.
- Mount With the Correct Wallplate: Fold wires neatly into the box, mount the rocker switch, install a decorator-style wallplate if required, restore power, and test operation from both switch locations.
